UBE: How to Troubleshoot Error Messages in Work Center When There Are No Valid Logs to Analyze Using F01131M

Purpose of Document

This document provides suggestions on troubleshooting based on an error message in the Work Center when the issue is intermittent or hard to replicate at will.

Overview

In running standard UBE reports where multi-level error messaging has been implemented, the error messages will be written based on the mechanism written at <Document 658785.1> E1: RDA: Simple Batch Error Message Example

The actual message will be written into the table F01131M - JDEM Multi Level Message. The information contained in this table includes the following:

• AN8 (AddressNumber): Address Number of user ID who submits a certain UBE report. This information will come from F0092.AN8 where F0092.USER is the User ID who submits the job.

• LV (LevelIndented): This contains the message level along with the table F01131 - PPAT Message Control File. In general an error from a business function will be 4 and from a system function 'Set UBE Error' will set this value as 3.

• MSGP (PPATBriefMassage): This column will show the brief error message that appears in Work Center.

• TMPI (TemplateID): This column contains the error code (e.g., 0002, 088R).  The detailed description of the error code is stored at F9207. (Column Description will come from F9203)

• FCTNM (FunctionName): This column stores the Business Function Name (F9862.SIFCTNM (Function Detail.FunctionName) then review F9862.SIOBNM to get the Object Name.  The same information can be accessed through P98652 which is accessing data from F9862 (Object Librarian - Function Detail) and F9860 (Object Libririan Master Table).

Note: you may get this information through P98652 - Business Function Search as below:

Function Name	Source Module	Description	Template Name
F0911FSBeginDoc	B0900049	F0911 Begin Document	D0900049A

• LNBR(SourceLineNumber): The source line number of F9862.OBNM based on function name of FCTNM. This line can be reached using short key Ctrl + G



  MSGP	LV	TMPI	FCTNM	LNBR	OBNM
  Explanation	4	008R	F0911FSBeginDoc	727	B0900049
  Error: Record Invalid	4	0002	F0911FSBeginDoc	675	B0900049
  Error: Order On Hold	3	0965	Set UBE Error	478	N/A

To debug Set UBE Error get the event rule and look for the error code based on F01131M.TMPI information

If error is coming from the Business Function, use the following steps to troubleshoot:

1. Open xxx.c file

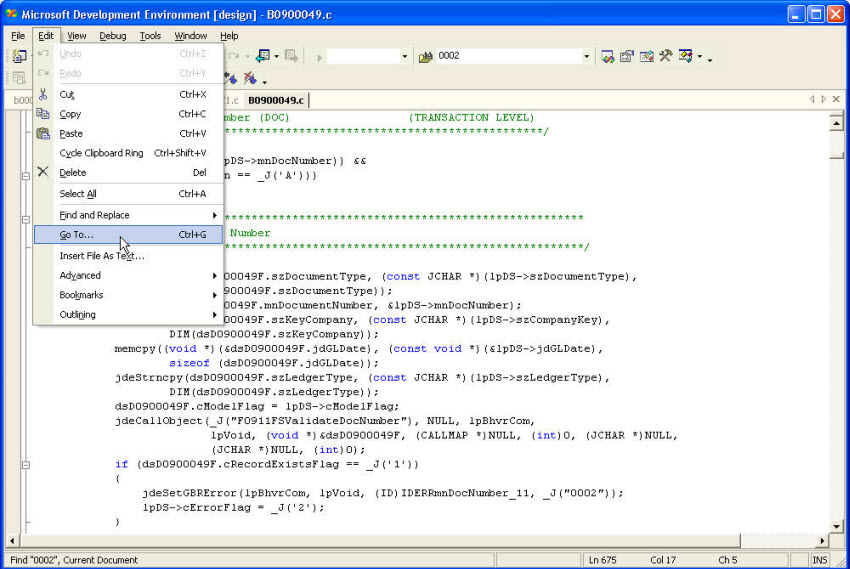

2. Ctrl + G (or Menu>Edit>Go To) then enter the line number that appears at F01131M.LNBR



3. Look for the condition for the error


   *** Break In Code of B0900049 - F0911FSBeginDoc ***

   if ((MathZeroTest(&lpDS->mnDocNumber)) &&
                                  (lpDS->cDocAction == _J('A')))
   {
   /************************************************************************
   * Validate Document Number
   ************************************************************************/
   jdeStrncpy(dsD0900049F.szDocumentType, (const JCHAR *)(lpDS->szDocumentType), DIM(dsD0900049F.szDocumentType));
   MathCopy(&dsD0900049F.mnDocumentNumber, &lpDS->mnDocNumber);
   jdeStrncpy(dsD0900049F.szKeyCompany, (const JCHAR *)(lpDS->szCompanyKey), DIM(dsD0900049F.szKeyCompany));
   memcpy((void *)(&dsD0900049F.jdGLDate), (const void *)(&lpDS->jdGLDate),
   sizeof (dsD0900049F.jdGLDate));
   jdeStrncpy(dsD0900049F.szLedgerType, (const JCHAR *)(lpDS->szLedgerType),
   DIM(dsD0900049F.szLedgerType));
   dsD0900049F.cModelFlag = lpDS->cModelFlag;
   jdeCallObject(_J("F0911FSValidateDocNumber"), NULL, lpBhvrCom,
   lpVoid, (void *)&dsD0900049F, (CALLMAP *)NULL, (int)0, (JCHAR *)NULL,
   (JCHAR *)NULL, (int)0);
      if (dsD0900049F.cRecordExistsFlag == _J('1'))
      {
          jdeSetGBRError(lpBhvrCom, lpVoid, (ID)IDERRmnDocNumber_11, _J("0002"));
          lpDS->cErrorFlag = _J('2');
      }
   } /* end if document number isn't zero and action is 'A' */

   *** Break In Code ***

   Notes:

   • Error routine: dsD0900049F.cRecordExistsFlag is '1'
   • Data Structure dsD0900049F is data structure for BSFN F0911FSValidateDocNumber
   • Error Code '0002' is hard coded
   • cErrorFlag will be set to '2'
   • lpDS is long pointer data structure for the first level BSFN B0900049 - F0911FSBeginDoc
   • So, for this example, refer to source of B0900049 - F0911FSValidateDocumentNumber


   For this example, the called report R0911Z1 exit from routine as xxxBeginDoc ends in error. Keep in mind the Master Business Function flow as below:

   1. xxxBeginDoc: Validate header/initialize variables and store header cache (if any)
   2. xxxEditLine: Validate Detail and create cache for detail
   3. xxxEditDoc: Compare header cache with detail cache (e.g., summary of detail has to be header)
   4. xxxEndDoc: Commit cache to DB and clear cache used


   *** Break In Code of B0900049 - F0911FSValidateDocNumber ***
   jdeStrncpy(dsF0911Key15.glkco, (const JCHAR *)(lpDS->szKeyCompany),DIM(dsF0911Key15.glkco));
   jdeStrncpy(dsF0911Key15.gldct, (const JCHAR *)(lpDS->szDocumentType),DIM(dsF0911Key15.gldct));
   MathCopy(&dsF0911Key15.gldoc, &lpDS->mnDocumentNumber);
   memcpy((void *)(&dsF0911Key15.gldgj), (const void *)(&lpDS->jdGLDate), sizeof (dsF0911Key15.gldgj));
   MathCopy(&dsF0911Key15.gljeln, &lpDS->mnJELineNumber);
   jdeStrncpy(dsF0911Key15.glextl, (const JCHAR *)(lpDS->szLineExtension),DIM(dsF0911Key15.glextl));
   jdeStrncpy(dsF0911Key15.gllt, (const JCHAR *)(lpDS->szLedgerType),DIM(dsF0911Key15.gllt));
   nNumKeysF0911 = 7;
   lpDS->cRecordExistsFlag = _J('0'); /* Note: cRecordExistFlag is initialized */
   /************************************************************************
   * Do a fetch keyed for account ledger record
   ************************************************************************/
   idJDBReturn = JDB_FetchKeyed(hRequestF0911, ID_F0911_DOC_TYPE__NUMBER___B,
   (void *)&dsF0911Key15, nNumKeysF0911,
   (void *)&dsColF0911, FALSE);

   if(idJDBReturn == JDEDB_PASSED) /* If a record is found then set cRecordExistsFlag to '1' */
   {
       lpDS->cRecordExistsFlag = _J('1'); /* cRecordExistFlag is set 1 */
   }
   *** Break In Code ***

   Notes:

   • Based on input parameters in calling F0911FSBeginDoc, it assigns/copies data or pointer into dsF0911Key15
   • It is looking for specific index file so JDB_FetchKeyed() API is issued
   • As long as it fetches a record, the function sets cRecordExistFlag to '1' to stop Database(or JDBC) from issuing a Duplicate Key error

4. If needed compare the function with the jdedebug.log

   Example of jdedebug:

   ERROR INFO JDEERR - ID= 0, Error= 0002 - \\DeploymentServerName\E1Release\PathCode\PackageName\Source\b0900049.c, Line=675

   Notes:

   • Do not focus on deployment server name here as this is just information that C components are sitting in deployment server (for this example, b0900049.obj shall contain this information during compilation)
   • The debug log shows Error ID '0002', Business Function ID 'b0900049.c' and Line Number '675' which is same as the message written in F01131M
   • By searching jdedebug.log or UBE log using keywords 'F01131M' and/or 'JDEERR' the same debugging technique can be applied

Example

Supposed that some error messages are written in Work Center after submitting UBE R09110Z - Journal Entry Batch Processor as below

For this example,
