Title: How to Implement User Reserved Columns in P4210 (Sales Order Entry)
Abstract: This document explains
how User Reserved Columns can be added into F4211 Sales Order Detail File
through P4210 Sales Order Entry.
Caution: This document may
contain information, software, products or services which are not supported by
Oracle Support Services and are being provided as is without warranty. Please
refer to the following site for My Oracle Support Terms of Use:
https://support.oracle.com/CSP/ui/TermsOfUse.html
Table of Contents
Introduction
User Interface
Action Plan
Example of
Implementation
Introduction
Before implementing,
try to understand the logic on how the system handles Sales Order Data. In
adding/changing Sales Order, header and detail data can be either being held
through Cache or through Work File.
Currently
there are 3 available Work File,
- F42UI01:
SO Header Cache File (MBF)
- F42UI11:
SO Detail Cache File (MBF)
- F42UI12: Sales Order Detail Cache 2 (MBF)
Note:
There is F42UI02 but it is just data structure not a logical data repository
Currently
a Table F42UI12 contains User Reserved Columns. So we are going to make use of
existing Function/Data Structure.
Before
implementing, be sure to understand the detailed functionality of the master business
function (BSFN) in Sales Order Entry.
In the EnterpriseOne
Distribution Module, major application handles data through Cache (or Work File
for equivalent Batch Application).
P4210
handles Sales Order Header/Detail Data as follows :-
- Call F4211FSBeginDoc to validate and create
cache for Sales Order Header
- Call F4211FSEditLinePreProcess
to handle additional columns which F4211FSEditLine cannot handle (Note
that the original purpose of this BSFN is to handle Transportation
functionality in Sales Order Entry application)
- Call F4211FSEditLine to validate Sales Order
Detail Information and create its cache
- (Internal) F4211FSEditLine is calling F4211SOEInternalFunctions
which is actual code which handles Sales Order Detail Cache
- Call F4211EditDoc to compare/compute header
cache and detail cache
- Call F4211FSEndDoc to commit Header/Detail
Cache to tables F4201 Sales Order Header File and F4211 Sales Order
Detail File
For this
example, we may make use of existing BSFN (without modifying any Data Structure
and BSFN) but the same implementation can be done by altering F4211FSEditLine
(with Data Structure of D4200310F) by adding the User Reserved Columns in the
Data Structure and F42UI11. However this is not recommended because a as change in the data structure may cause
Memory Related Issues across systems.
Detail
Information is handled by BSFN B4200311 (same configuration can be found,
XT4311Z2 for Purchase Order Entry, XT4312Z2 for Purchase Order Receipt and
XT4314Z2 for Voucher Match Application)
F4211FSEditLine
does not have User Reserved Columns as members of data structure and we can
observe that F42UI12 (Extension of F42UI11) contains User Reserved Columns. So
we need to make use of existing cache or workfile to fulfill this implementation.
Back to Top
User Interface
This will describe simple and standard functionality based
on Adding a new Sales Order.
1. Launch Sales Order Revision P4210 W4210A [Sales Order
Revision]
2. In Exiting Grid Row store User Input value into Cache (Work
File)
Action Plan
- Verify
existing logic in creation of F4211
- Study
the C Code of B4200311 in detail to understand the functionality
- Determine
how User input value has to be written to cache (Work File)
- Add User Reserved
Columns in Business View V4211C Sales Order Detail
- Unhide User Reserved
Columns in Grid of W4211A form
- Enable existing code to
handle User Reserved Columns to BSFN F4211FSEditLinePreProcess
- Handle Data in Update
Mode
- Test change made
Possible Implementation

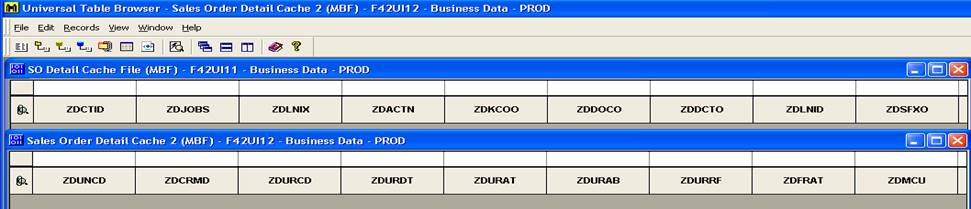

- Verify
existing Work Files for Sales Order Detail File
è
Table F42UI12 contains User Reserved Columns
è
Data Structure D4200310J contains these columns
è
So verify which business function uses the data
structure
- Add/Select
User Reserved Columns from Business ViewV4211C

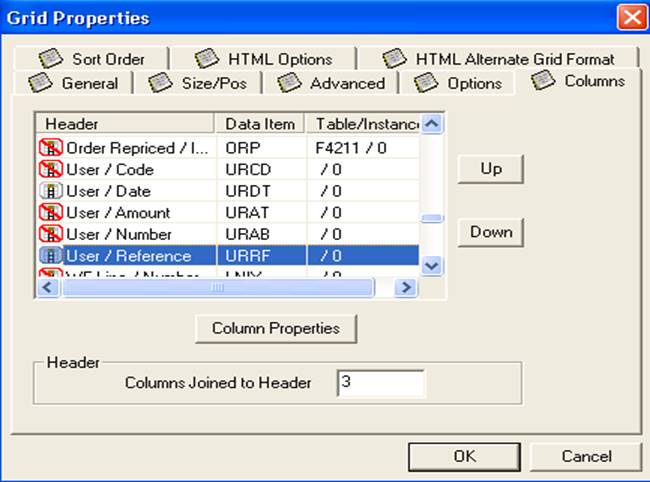

- Verify
Data Dictionary item for User Reserved Columns

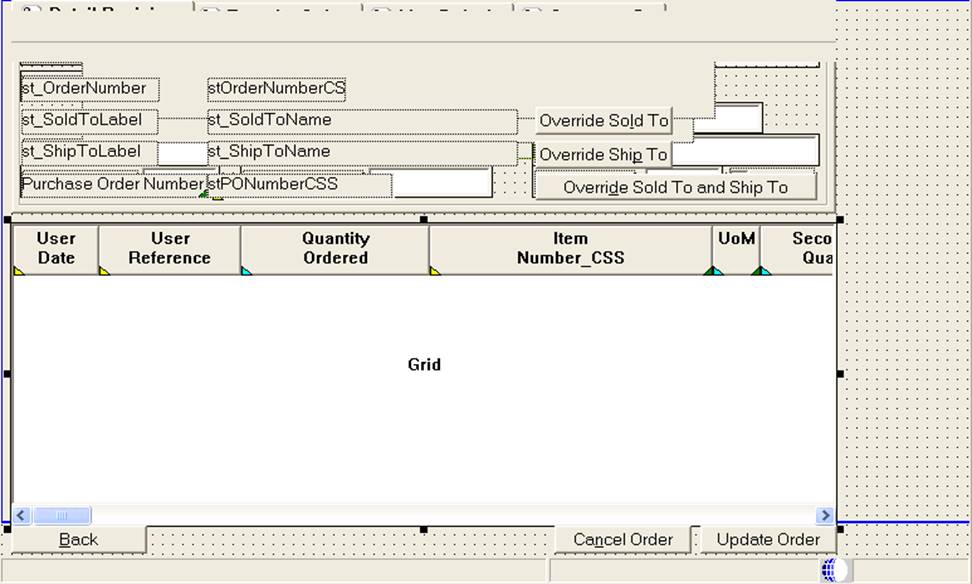

- After
changing properties of DD Item Columns move it to proper location
àNote that User Date (URDT)
and User Reference (URRF) is a Data Dictionary item not Business View Column
àSince all the data are being
handled through Master BSFN, using Data Dictionary Item may be a better option
to implement

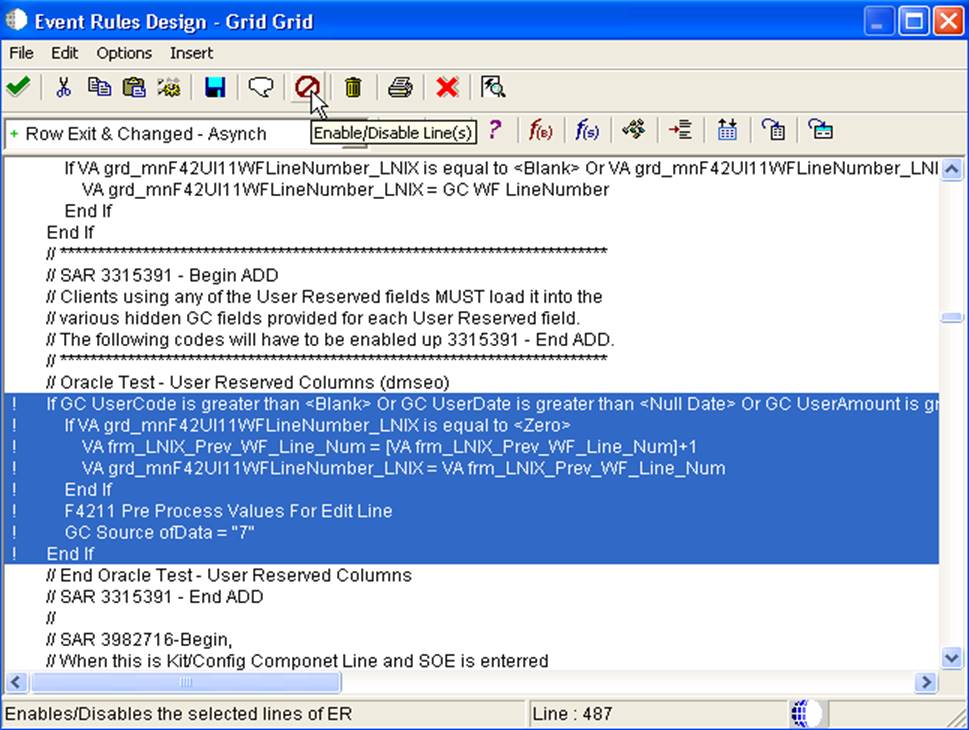

- Verify/Enable
Disabled Code from (Grid) Row Exit & Changed Asynch
è
Above routine creates another set of cache
(F42UI12)
è
Source of Data will be handled in calling
F4211FSEditLine
è
Currently GC Source of Data = 7 is not utilized
è
Enable block of codes highlighted above
- Verify
existing code in B4200311.c to determine how it creates cache
*** Break
In Code ***
if((lpDS->cCMRecdWrittenToWF !=_J('1'))
&&
(lpDS->cCMRecdWrittenToWF
!=_J('3')) &&
(lpDS->cCMRecdWrittenToWF
!=_J('5')) &&
((lpDS->cWKSourceOfData != _J('7'))
||
((lpDS->cWKSourceOfData
== _J('7')) &&
(MathZeroTest(&lpDS->mnSODRelatedJobNumber))))) /* Based on GC Value assigne it comes to this routine
*/
{
if (lpDS->cCMWriteToWFFlag == _J('2')) /* cCMWrieteToWFFlag = 2
is to be implemented only when BSFN gets called in Batch Application */
{
if((lpds4200310B->cCSSRecdWrittenToWF
== _J('1')) &&
((lpdsF42UI12->zdffg1 != _J(' '))
|| (lpdsF42UI12->zdffg1 != _J('\0'))
|| (lpdsF42UI12->zdffg1 != _J('0'))))
{
lpdsF42UI12->zdffg1 = _J('1');
}
}
idReturnAPIValue =
F42UI12_Insert(lpds4200310B->lpdsF42UI12DAO,lpdsF42UI12,
szErrorMessageID); /* Routine to write cache
F42UI12 */
if(idReturnAPIValue != ER_SUCCESS)
{
memset((void
*)&dsDE0022, (int)_J('\0'), sizeof(dsDE0022));
jdeStrcpy((JCHAR
*)dsDE0022.szDescription, (const JCHAR *)_J("F42UI12"));
jdeSetGBRErrorSubText(lpBhvrCom,
lpVoid, (ID)0,
szErrorMessageID, &dsDE0022);
}
}
else
{
if (lpds4200310B->cByPassOrPurge !=
_J('1'))
{
idReturnAPIValue =
F42UI12Index2_UpdateKeyed(lpds4200310B->lpdsF42UI12DAO,3,
lpDS->szCMComputerID,
lpDS->mnCMJobNo,lpDS->mnCMLineNo,lpdsF42UI12,szErrorMessageID);
if
(idReturnAPIValue != ER_SUCCESS)
{
memset((void
*)&dsDE0022, (int)_J('\0'), sizeof(dsDE0022));
jdeStrcpy((JCHAR
*)dsDE0022.szDescription, (const JCHAR *)_J("F42UI11"));
jdeSetGBRErrorSubText(lpBhvrCom,
lpVoid, (ID)0,
szErrorMessageID,
&dsDE0022);
}
}
else
{
/*---------------------------------------------------------------------
* The line is being bypassed, so delete
it from the work file now.
*----------------------------------------------------------------------*/
idReturnAPIValue =
F42UI12Index2_DeleteKeyed(lpds4200310B->lpdsF42UI12DAO,3,
lpDS->szCMComputerID,
lpDS->mnCMJobNo,lpDS->mnCMLineNo,szErrorMessageID);
if
(idReturnAPIValue != ER_SUCCESS)
{
memset((void
*)&dsDE0022, (int)_J('\0'), sizeof(dsDE0022));
jdeStrcpy((JCHAR
*)dsDE0022.szDescription, (const JCHAR *)_J("F42UI12"));
jdeSetGBRErrorSubText(lpBhvrCom,
lpVoid, (ID)0,
szErrorMessageID,
&dsDE0022);
}
}
}
*** Break In Code ***
- Test - Enter User Reserved
Columns
- Verify that GC User Reserved
Columns are commited to table F4211
- To handle data from Update Mode
àOr this can be implemented
with other method (Table I/O or calling BSFN)
Objects Affected
- Business View V4211C
- Interactive Application
P4210
