Interoperability JDEIL and Inventory Transaction

Purpose of Document

This note is to explain Interoperability Transaction Type 'JDEIL - Item Location' which can be found in Inventory Transaction Application.

Through this note, we may identify concerns in dealing with item location file and provide answers on this type of inquiry.

Q1> What are the applications which have JDEIL - 'Item Location' as processing Option?

Below objects have option to interface:

• P4112 - Inventory Issue (T4112)
• P4113 - Inventory Transfer (T4113)
• P4114 - Inventory Adjustments (T4114X)
• P4116 - Item Reclassification (T4116)
• R41413 - Cycle Count Update (T41413)
• R41610 - Tag Inventory Update (T41610)
• R47121 - EDI Product Activity Data Edit/Create (T47121)
• R47122 - EDI Product Activity Data Extraction (T47122)

Q2> Does JDEIL write to the Z (F41021Z1) table?

No, JDEIL does not populate F41021Z1. It populates the following tables:

• F47126 - EDI Product Activity Data Header - Outbound
• F47127 - EDI Product Activity Data Detail - Outbound

Cf., TYTN (TypeTransaction) 852 - Product Activity Data which may populate below,

• Inbound
• F47121 - EDI Product Activity Data Header - Inbound
• F47122 - EDI Product Activity Data Detail - Inbound
• Outbound
• F47126 - EDI Product Activity Data Header - Outbound
• F47127- EDI Product Activity Data Detail - Outbound

Q3> Then how does table F41021Z1 get populated?

Currently Item Location Extraction has standalone settings so it is not meant to be called by/from other interactive applications. So though it populates the  Z Table (F41021Z1) the mechanism for interfacing with this table is different from other interoperability functions in EnterpriseOne. Data from F41021Z1 can be populated either by entering data P41021Z1 or by running R41021ZX.

Table F41021Z1 (Item Location Unedited Transaction File) can be populated as below:

• G41313 - Inventory Interoperability
• Via Inventory Management > Inventory/Advanced - Technical Ops > Inventory Interoperability
• Item Location Extraction (R41021ZX)
• Item Location Unedited Transaction (P41021Z1)
• Purge Item Location Transaction Record (R41021ZP)

Q4> Is there any way to send through subsystem?

By setting processing options for tab Interop with value JDEIL, which write a record into F986113 as below through XT4111Z1 - F4111 End Document,

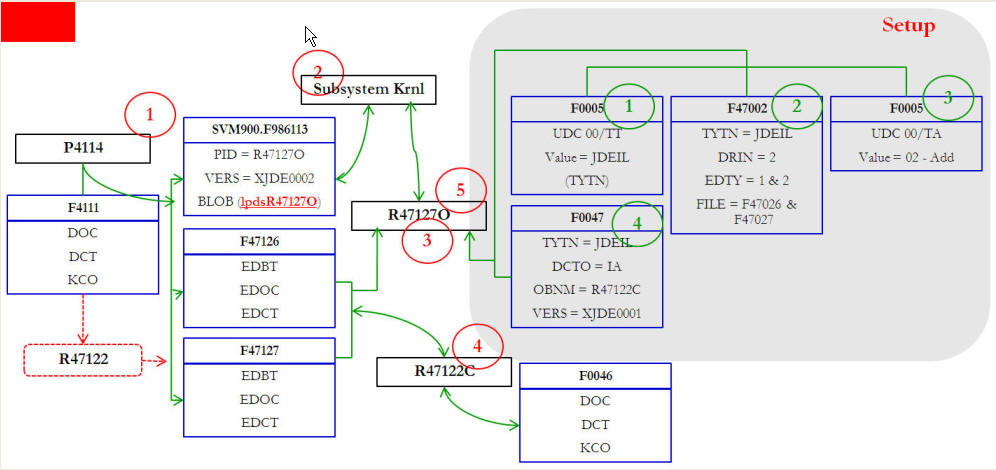

Q5> How can EDI Product Activity Outbound be implemented?

• Basic Set Up:
• 1. Verify UDC 00/TT - Transaction Type has definition for the transaction you want to perform (e.g., JDEIL)
• 2. Verify Transaction Type defined above has definition on Interoperability file for outbound
• 3. Verify UDC 00/TA - Transaction Action
• 4. Add Data Export Control record through P0047 - Data Export Controls which writes F0047
• Execution:
• Business Scenario: whenever a certain inventory transaction takes place create a  flat file based on 'EDI Product Activity Data Header - Outbound (F47126)' and 'EDI Product Activity Data Detail - Outbound (F47127)'
• 1. Set/verify Processing Option item #1. Transaction Type in Interop tab "JDEIL"
• 2. (For example) create inventory transaction through P4114 - Inventory Adjustment
• 3. Verify that F47126/F47127 get populated and a single row of data is inserted into SVM900.F986113
• 4. Run R47127O - Outbound Product Activity Data Subsystem UBE (or through continuously running process of subsystem job R47127O ), F0046 gets populated based on definition in F0047
• R47127O  can be continuously running process or you may submit it manually
• 5. Verify jobs (triggered by subsystem kernel and processed by queue kernel, UBE kernel and callobject kernel). R47122C (or your custom report or BSFN) gets called SYNCHRONOUSLY through R47127O
• 6. Purge F47126/F47127 through EDI Product Activity Outbound Data Purge R47129A
