Grid Collapses in Form W4314B (Receipt To Match) for Language CT

Purpose of Document

The purpose of this document is to guide the user how to debug the grid collapse issue step by step. Note that this is one example and the actual cause of the issue can be different from what it is described here.

Grid collapse (memory corruption in HTML client) can come from,

Data impurity (or data corruption)
Specification corruption

this document shall focus on specification corruption

Caution: This document/post may contain information, software, products, services which are not supported by Oracle Support Services and are being provided “as is” without warranty. Any code included within this document/post is provided as an example at the time of the document/post creation. It may not be the latest code for the object and may not match the code within your E1 environment. To review the latest code for an object, search for and install the latest ESU available for the object. Please refer to the following site for My Oracle Support Terms of use: http://www.oracle.com/pls/topic/lookup?ctx=mos_en&id=MOSHP983

Symptoms

When using Chinese traditional (CT) language profile in User Profile (P0092), called form W4312B (Receipt To Match) does not show grid (Grid collapse) in HTML client.

(Testing purpose) it is working fine in Windows client (F9860.siansif = ' ' where siobnm in ('P0411', 'P4314')
It is working fine in CS (Chinese Simplified)
Steps to duplicate:
- 1. Add a PO via P4310 PO Entry.
- 2. At the P4312 perform PO Receipt.
- 3. At the P4314, enter the PO number and branch etc. Form exit to Receipt To Match (P0411|ZJDE0007 is calling P4314 (W4314A)
- 4. Grid collapse

Screenshot:

Issue Detail

Note:

Above printscreen is to show the difference between EnterpriseOne application release 9.0 and 9.1
In 9.1 release, grid got collapsed
- Form Title is missing
- Column heading is missing
- Blank page appears
Whereas same form is able to describe form in 9.0 release

Changes

New installation

Language pack is installed
Built full package for language CT (Chinese Traditional)

Cause

Corrupted FDATEXT specification in HTML client.

Note:

Grid can be collapsed owing to corrupted data (in general in contains special character)
Refer to <Document 947798.1> - E1: FDA: Grid Disappears When Using "Go To End" on Web Client

How To Debug

One of possible way to debug is,

1. Right-mouse button click on the page which shows collapsed as below,

How to view the source in HTML

2. Copy it to Microsoft word (or other editor which can hold foreign language)

Invalid result
Valid result

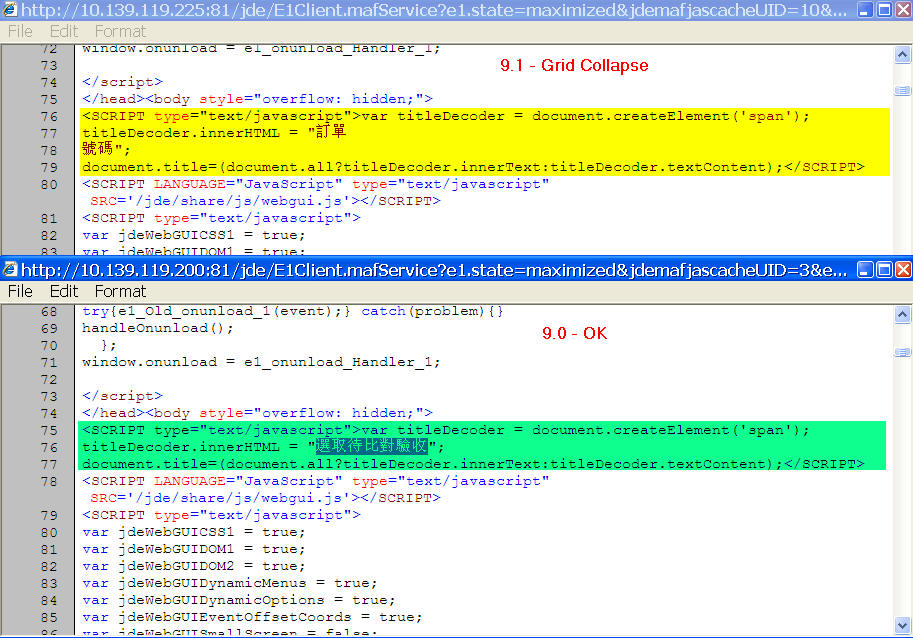

HTML Source Comparison

Note:

In rendering title, above two show different result as below,

Correct

選取待比對驗收

Incorrect

訂單
號碼

: It shows wrong assignment. Since incorrect input is the 1st column of grid, which contains 'return carriage' but this value is assigned form title. For this example, form title should not contain any special character which eventual causes grid/from gets collapsed

Workaround

In case this is an urgent issue, correct it through OMW. Note that Form Title can not be overridden through vocabulary override. Refer to- E1: DD: Vocabulary Overrides.

Before starting review central object information through UTB (Univeral Table Browser),

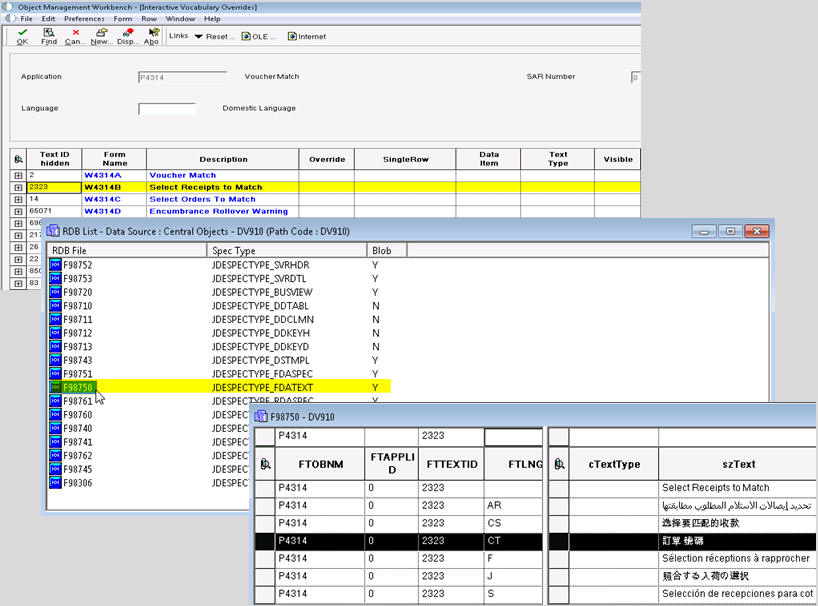

Central Objects

Note:

Language specific table can be found at <Document 1476100.1> - E1: DD: LNGP (Languge, LanguagePreference) and UDCs 01/LP, H79/AS and H95/LN
Central Object or specification in EnterpriseOne can be found at <Document 1142313.1> - E1: ENV: Overview of Specifications (SPEC) in EnterpriseOne
In P9220 put language to 'CT' and verify that Form Tile is not displayed correctly
Central Object F98750 contains FDATEXT information
Text ID can be collected through Vocabulary Override (e.g., 2323)
P9220 does not allow you to override Form Title so refer to below workaround
Return Carriage '\n' reside in between '訂單' and '號碼' which appears to be a space because this has to be the 1st column of grid.

Now the user has verified Text ID and what is problem for this issue. So below steps will guide you how to override it to render form/grid of W4314B correctly. For further detail, refer to <Document 632443.1> - E1: FDA: Translate the Form Title based on Language Preference

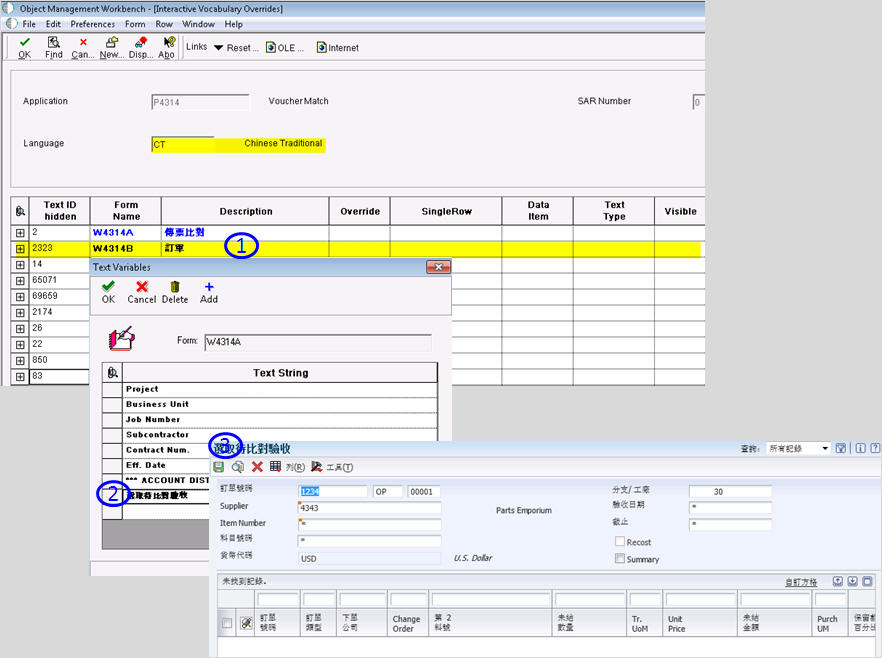

workaround

Note:

(1) Form Title is not written correctly
Log on to user specific language (e.g., CT)
Go to Form Design Aid
Add TV (Text Variable) .Refer (2)
Call System Function in General Section of system function "Set Form Title" at the first line of "Dialog Is Initialized" Event
Check In
Build client package
Test it. Refer (3) which shows Form Title correctly and Grid is not collapsed and form title appears correctly

Solution

Refer <Bug 16069933> - W4314B GRID COLLAPSE FOR CT LANGUAGE PROFILE

If issue is specific to a certain set of data, refer to <Document 947798.1> - E1: FDA: Grid Disappears When Using "Go To End" on Web Client

Currently this fix is availble with ESU name "TCH_FIX_006" which you can find from Change Assistant.
