Relationship between Interop tables F4101Z1, F4101Z1A and Master tables F4101 and F4102 in R4101Z1I

Purpose of Document

The purpose of this document is to describe how to map columns from F4101Z1 and F4101Z1A by indicating columns from F4101 and F4102, and the additional validation routine involving related business functions. This document can be used to understand the relationship between F4101 and F4102 and the item characteristics stored in them.


Business Functions referenced in R4101Z1I
: Business function which are used in running item master and item branch file creation

Function nameSource  ModuleDescriptionTemplate  NameOthers
F4101ProcessMasterData N4101060 Edit Retrieve Delete Base Data D4101060A Insert F4101A
EditRetrieveDeleteBulkData N4101060 Edit Retrieve Delete Bulk Data D4101060B Insert F4101B
EditRetrieveDeleteCategoryCodes N4101060 Edit Retrieve Delete Category Codes D4101060C Insert F4101C
EditRetrieveDeleteCustService N4101060 Edit Retrieve Delete Customer Service Data D4101060F Insert F4101F
EditRetrieveDeleteItemProfile N4101060 Edit Retrieve Delete Item Profile Data D4101060I Insert F4101W
EditRetrieveDeleteManufacturing N4101060 Edit Retrieve Delete Manufacturing Data D4101060D Insert F4101M
EditRetrieveDeletePackaging N4101060 Edit Retrieve Delete Packaging Data D4101060H Insert F4101P
EditRetrieveDeleteShipping N4101060 Edit Retrieve Delete Shipping Data D4101060E Insert F4101S
UpdateItemProcessData N4101070 Update Item Process Data D4101060J Insert F4101, F41011, F4908, F4117, F4102, F41021, F41022, F46010, F41171, F4101Z1, F4101Z1A
EditRetrieveDeleteBranchQuantity N4101350 Edit Retrieve Delete Branch Quantities D4101350 Insert F4101G

Note:

Back To Top


Tables to maintain relationship between F4101 and F4102
  These tables can be used to store data

TableDescriptionUsed by
F4101      Item Master
F41011     Bulk Item Master
F41012     Conversion Table Interface File
F41013     Unique Product Number
F41015     Item Duplication Work File
F4101A     Item File F4101ProcessMasterData
F4101B     Item Master Bulk Data  EditRetrieveDeleteBulkData
F4101C     Item Category Codes EditRetrieveDeleteCategoryCodes
F4101D     Item Master - Alternative Description
F4101F     Item Customer Service Data EditRetrieveDeleteCustService
F4101G     Item Branch Quantities  EditRetrieveDeleteBranchQuantity
F4101H     Item Hierarchy (Web)
F4101HD    Item Hierarchy - Alternate Description
F4101M     Item Manufacturing Data  EditRetrieveDeleteManufacturing
F4101P     Item Master Packaging EditRetrieveDeletePackaging
F4101S     Item Master Shipping Data EditRetrieveDeleteShipping
F4101SRM   Item Master SRM Tag File
F4101T     OBSOLETE - Item Master Tag File
F4101TT    Temp Table Merge Xe F4101T to E9 F4101
F4101W     Item Profile Data EditRetrieveDeleteItemProfile
F4101Z1    F4101 Item Master Unedited Transaction Table
F4101Z1A   F4101 Detail Item Master Unedited Transaction

Note:

Back To Top

Note that this document is created based on EnterpriseOne application release 9.1. For furthr detail, refer to <Document 625451.1> E1: 41: How to Create Item Master and Item Branch Plant Records Using Interoperability (R4101Z1I/P4101Z1/F4101/F4102/F4101Z1).


F4101Z1 Mapping
The following table shows the destination of column values based on F4101Z1.
For easier reading:

SeqTableAliasBSFNData ItemDescriptionF4101 SeqF4102 SeqColumn Title 1Column Title 2Others
1 F4101Z1 EDUS*   EdiUserId EDI - User ID     User ID Key for
2 F4101Z1 EDBT*   EdiBatchNumber EDI - Batch Number     Batch Number
3 F4101Z1 EDTN*   EdiTransactNumber EDI - Transaction Number     Transaction Number
4 F4101Z1 EDLN*   EdiLineNumber EDI - Line Number     Line Number
5 F4101Z1 EDCT   EdiDocumentType EDI - Document Type     Doc Ty
6 F4101Z1 TYTN   TypeTransaction Type - Transaction     Trans Type
7 F4101Z1 EDFT   EdiTranslationFormat EDI - Translation Format     Translation Format
8 F4101Z1 EDDT   EdiTransmissionDate EDI - Transmission Date     Tran Date
9 F4101Z1 DRIN   DirectionIndicator Direction Indicator     Dir Ind
10 F4101Z1 EDDL   EdiDetailLinesProcess EDI - Detail Lines Processed     # Lines
11 F4101Z1 EDSP   EdiSuccessfullyProcess EDI - Successfully Processed     S P Set 'Y' if success
12 F4101Z1 PNID   TradingPartnerId Trading Partner ID     Trading Partner
13 F4101Z1 TNAC F4101ProcessMasterData
EditRetrieveDeleteCategoryCodes
EditRetrieveDeletePackaging
EditRetrieveDeleteBranchQuantity
UpdateItemProcessData		 TransactionAction Transaction Action     Tr Ac
14 F4101Z1 ITBR F4101ProcessMasterData
EditRetrieveDeleteCategoryCodes
UpdateItemProcessData
EditRetrieveDeleteManufacturing
EditRetrieveDeleteCustService
EditRetrieveDeleteBulkData		 UpdateItemBranch Update Item Branch     Update Item/Branch 1 - Update Item Master Only
2 - Update Item Branch Only
3 - Update both Item Master and Item Branch
15 F4101Z1 ITM F4101ProcessMasterData
EditRetrieveDeleteCategoryCodes
EditRetrieveDeletePackaging
EditRetrieveDeleteBranchQuantity
UpdateItemProcessData
EditRetrieveDeleteManufacturing
EditRetrieveDeleteCustService
EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteItemProfile		 IdentifierShortItem Item Number - Short 1 1 Short Item No Can be updated
16 F4101Z1 KIT F4101ProcessMasterData ItemNumberShortKit Parent (short) Item Number     Parent Item No  xxxxxxxxxxxxxxxxxxxxxxxxxxx
17 F4101Z1 LITM F4101ProcessMasterData Identifier2ndItem 2nd Item Number 2 2 2nd Item Number Can be updated
18 F4101Z1 AITM F4101ProcessMasterData Identifier3rdItem 3rd Item Number 3 3 3rd Item Number Can be updated
19 F4101Z1 DSC1 F4101ProcessMasterData DescriptionLine1 Description 4   Description
20 F4101Z1 DSC2 F4101ProcessMasterData DescriptionLine2 Description - Line 2 5   Description Line 2
21 F4101Z1 SRTX F4101ProcessMasterData SearchText Search Text 6   Srch: Search Text
22 F4101Z1 ALN F4101ProcessMasterData SearchTextCompressed Search Text - Compressed 7   Search Text Compressed
23 F4101Z1 SRP1 EditRetrieveDeleteCategoryCodes SalesReportingCode1 Sales Catalog Section 8 5 Sls Cd1
24 F4101Z1 SRP2 EditRetrieveDeleteCategoryCodes SalesReportingCode2 Sub Section 9 6 Sls Cd2
25 F4101Z1 SRP3 EditRetrieveDeleteCategoryCodes SalesReportingCode3 Sales Category Code 3 10 7 Sls Cd3
26 F4101Z1 SRP4 EditRetrieveDeleteCategoryCodes SalesReportingCode4 Sales Category Code 4 11 8 Sls Cd4
27 F4101Z1 SRP5 EditRetrieveDeleteCategoryCodes SalesReportingCode5 Sales Category Code 5 12 9 Sls Cd5
28 F4101Z1 SRP6 EditRetrieveDeleteCategoryCodes SalesReportingCode6 Category Code 6 13 10 Cat Cd6
29 F4101Z1 SRP7 EditRetrieveDeleteCategoryCodes SalesReportingCode7 Category Code 7 14 11 Cat Cd7
30 F4101Z1 SRP8 EditRetrieveDeleteCategoryCodes SalesReportingCode8 Category Code 8 15 12 Cat Cd8
31 F4101Z1 SRP9 EditRetrieveDeleteCategoryCodes SalesReportingCode9 Category Code 9 16 13 Cat Cd9
32 F4101Z1 SRP0 EditRetrieveDeleteCategoryCodes SalesReportingCode10 Category Code 10 17 14 Cat Cd10
33 F4101Z1 PRP1 EditRetrieveDeleteCategoryCodes PurchasingReportCode1 Commodity Class 18 15 Comm Class
34 F4101Z1 PRP2 EditRetrieveDeleteCategoryCodes PurchasingReportCode2 Commodity Sub Class 19 16 Sub Comm
35 F4101Z1 PRP3 EditRetrieveDeleteCategoryCodes PurchasingReportCode3 Supplier Rebate Code 20 17 Rebate Code
36 F4101Z1 PRP4 EditRetrieveDeleteCategoryCodes PurchasingReportCode4 Master Planning Family 21 18 Plan Fmly
37 F4101Z1 PRP5 EditRetrieveDeleteCategoryCodes PurchasingReportCode5 Purchasing Category Code 5 22 19 Cost Rule
38 F4101Z1 PRP6 EditRetrieveDeleteCategoryCodes PurchReportingCode6 Group - Item Dimension 23 20 Item Dim Grp
39 F4101Z1 PRP7 EditRetrieveDeleteCategoryCodes PurchReportingCode7 Group - Warehouse Process 1 24 21 Process 1
40 F4101Z1 PRP8 EditRetrieveDeleteCategoryCodes PurchReportingCode8 Group - Warehouse Process 2 25 22 Process 2
41 F4101Z1 PRP9 EditRetrieveDeleteCategoryCodes PurchReportingCode9 Group - Warehouse Process 3 26 23 Process 3
42 F4101Z1 PRP0 EditRetrieveDeleteCategoryCodes PurchReportingCode10 Item Pool 27 24 Item Pool
43 F4101Z1 CDCD F4101ProcessMasterData CommodityCode Commodity Code 28 25 Commodity Code
44 F4101Z1 PDGR F4101ProcessMasterData ProductGroupFrom Product Group 29 26 Prd Grp
45 F4101Z1 DSGP F4101ProcessMasterData DispatchGrp Dispatch Group 30 27 Dsp Grp
46 F4101Z1 PRGR F4101ProcessMasterData PricingCategory Item Price Group 31 54 Item Group
47 F4101Z1 RPRC F4101ProcessMasterData RepriceBasketPriceCat Reprice (Basket Price) Category 32 55 Basket Reprice Group
48 F4101Z1 ORPR F4101ProcessMasterData OrderRepriceCategory Order Reprice Category 33 56 Order Reprice Group
49 F4101Z1 BUYR F4101ProcessMasterData Buyer Buyer Number 34 30 Buyer Number
50 F4101Z1 DRAW EditRetrieveDeletePackaging DrawingNumber Drawing Number 35   Drawing Number
51 F4101Z1 RVNO EditRetrieveDeletePackaging RevisionNumber Last Revision No. 36   Rev No
52 F4101Z1 DSZE EditRetrieveDeletePackaging DrawingSize Drawing Size 37   D Sz
53 F4101Z1 VCUD F4101ProcessMasterData VolumeCubicDimensions Cubic Dimensions - Volume 38   Volume Cubic Dim
54 F4101Z1 CARS EditRetrieveDeleteCategoryCodes Carrier Carrier Number 39 64 Carrier Number
55 F4101Z1 CARP EditRetrieveDeleteCategoryCodes PreferCarrierPurchasin Preferred Carrier - Purchasing 40 65 Pref Car Purch
56 F4101Z1 SHCN EditRetrieveDeleteCategoryCodes ShippingConditionsCode Shipping Conditions Code 41 66 Shipping Conditions
57 F4101Z1 SHCM EditRetrieveDeleteCategoryCodes ShippingCommodityClass Shipping Commodity Class 42 63 Ship Comm Class
58 F4101Z1 UOM1 F4101ProcessMasterData UnitOfMeasurePrimary Unit of Measure - Primary 43   UM
59 F4101Z1 UOM2 F4101ProcessMasterData UnitOfMeasureSecondary Unit of Measure - Secondary 44   Sec UM
60 F4101Z1 UOM3 F4101ProcessMasterData UnitOfMeasurePurchas Unit of Measure - Purchasing 45   PU UM
61 F4101Z1 UOM4 F4101ProcessMasterData UnitOfMeasurePricing Unit of Measure - Pricing 46   PR UM
62 F4101Z1 UOM6 F4101ProcessMasterData UnitOfMeasureShipping Unit of Measure - Shipping 47   Shipping UM
63 F4101Z1 UOM8 F4101ProcessMasterData UnitOfMeasureProduction Unit of Measure - Production 48   Prod UM
64 F4101Z1 UOM9 F4101ProcessMasterData UnitOfMeasureAllocation Unit of Measure - Component 49   Comp UM
65 F4101Z1 UWUM F4101ProcessMasterData UnitOfMeasureWeight Unit of Measure - Weight 50   Wt Um
66 F4101Z1 UVM1 F4101ProcessMasterData UnitOfMeasureVolume Unit of Measure - Volume 51   Vol UOM
67 F4101Z1 SUTM F4101ProcessMasterData UnitOfMeasureStocki Unit of Measure - Stocking 52   Stk U/M
68 F4101Z1 UMVW F4101ProcessMasterData UnitofMeasureVolumeorWeI Unit of Measure - Volume or Weight 53   V W  Default value = 'V'
69 F4101Z1 CYCL EditRetrieveDeleteCategoryCodes CycleCountCategory Cycle Count Category 54 70 Cyc Cnt
70 F4101Z1 GLPT F4101ProcessMasterData GlCategory Category - G/L 55 31 G/L Cat
71 F4101Z1 PLEV F4101ProcessMasterData PriceLevel Level - Sales Base Price 56   S L  Default = 2
72 F4101Z1 PPLV F4101ProcessMasterData LevelPurchasingPrice Level - Purchase Price 57   P L  Default = 3
73 F4101Z1 CLEV F4101ProcessMasterData CostLevel Level - Inventory Cost 58   C L  Default = 2
74 F4101Z1 PRPO EditRetrieveDeletePackaging PotencyPricing Grade/Potency Pricing 59   G P
75 F4101Z1 CKAV F4101ProcessMasterData CheckAvailabilityYN Check Availability Y/N 60 41 C A  Default = Y
76 F4101Z1 BPFG F4101ProcessMasterData BulkPackedFlag Bulk/Packed Flag 61   B P  Default = P
77 F4101Z1 SRCE F4101ProcessMasterData LayerCodeSource Layer Code - Source 62 42 LC Src
78 F4101Z1 OT1Y EditRetrieveDeletePackaging ConstantFutureUse1 Potency Control 63 44 P C  Default = N
79 F4101Z1 OT2Y EditRetrieveDeletePackaging ConstantFutureUse2 Grade Control 64 45 G C  Default = N
80 F4101Z1 STDP EditRetrieveDeletePackaging StandardPotency Standard Potency 65 46 Standard Potency
81 F4101Z1 FRMP EditRetrieveDeletePackaging FromPotency From Potency 66 47 From Potency  Default = 0000000
82 F4101Z1 THRP EditRetrieveDeletePackaging ThruPotency Thru Potency 67 48 Thru Potency  Default = 0000000
83 F4101Z1 STDG EditRetrieveDeletePackaging StandardGrade Standard Grade 68 49 Std Grd
84 F4101Z1 FRGD EditRetrieveDeletePackaging FromGrade From Grade 69 50 Frm Grd
85 F4101Z1 THGD EditRetrieveDeletePackaging ThruGrade Thru Grade 70 51 Thr Grd
86 F4101Z1 COTY F4101ProcessMasterData ComponentType Component Type 71 52 Co Ty
87 F4101Z1 STKT F4101ProcessMasterData StockingType Stocking Type 72 67 Stocking Type
88 F4101Z1 LNTY F4101ProcessMasterData LineType Line Type 73 68 Ln Ty  Default = S
89 F4101Z1 CONT F4101ProcessMasterData ContractItem Contract - Item 74   Cont Item  Default = N
90 F4101Z1 BACK F4101ProcessMasterData BackordersAllowedYN Backorders Allowed (Y/N) 75 57 Back Y/N  Default = Y
91 F4101Z1 IFLA F4101ProcessMasterData ItemFlashMessage Item Flash Message 76 58 It Mg
92 F4101Z1 TFLA F4101ProcessMasterData TemporaryItemFlashMessag Standard Unit of Measure Conversion 77 130 St UM
93 F4101Z1 INMG F4101ProcessMasterData PrintMessage1 Print Message 78 71 Print Message
94 F4101Z1 ABCS F4101ProcessMasterData AbcCode1SalesInv ABC Code 1 - Sales - Inventory 79 59 ABC 1 Sls
95 F4101Z1 ABCM F4101ProcessMasterData AbcCode2MarginInv ABC Code 1 - Margin - Inventory 80 60 ABC 2 Mrg
96 F4101Z1 ABCI F4101ProcessMasterData AbcCode3InvestInv ABC Code 3 - Investment - Inventory 81 61 ABC 3 Inv
97 F4101Z1 OVR F4101ProcessMasterData AbcCodeOverrideIndica ABC Code Override Indicator 82 62 ABC Ovrride
98 F4101Z1 WARR F4101ProcessMasterData TypeWarranty Type Warranty 83 72 Warranty Type
99 F4101Z1 CMCG F4101ProcessMasterData CommissionCategory Commission Category 84 75 Com. Cat.
100 F4101Z1 SRNR F4101ProcessMasterData SerialNumberRequired Serial Number Required 85 73 Serial No. Required  Default = N
101 F4101Z1 PMTH F4101ProcessMasterData MethodOfPriceCalcula Method - Kit/Configurator Pricing 86   M T
102 F4101Z1 FIFO F4101ProcessMasterData FifoProcessing FIFO Processing 87 69 FIFO Processing
103 F4101Z1 LOTS F4101ProcessMasterData LotStatusCode Lot Status Code 88 43 Lot Stat Code
104 F4101Z1 SLD F4101ProcessMasterData ShelfLifeDays Days - Shelf Life Days 89 40 Shelf Days
105 F4101Z1 ANPL F4101ProcessMasterData AddressNumberPlanner Planner Number 90 29 Planner Number
106 F4101Z1 MPST EditRetrieveDeletePackaging PlanningCode Planning Code 91 79 Pln Cod  Default = 2
107 F4101Z1 PCTM F4101ProcessMasterData PercentMargin Percent Margin 92 74 Margin Percent
108 F4101Z1 MMPC F4101ProcessMasterData MarginMaintenancePer Margin Maintenance (%) 93 53 Margin Maint %
109 F4101Z1 PTSC EditRetrieveDeletePackaging PartStatusCode Material Status 94   Pt St
110 F4101Z1 SNS EditRetrieveDeletePackaging StockNonstock Round to Whole Number 95 83 R N
111 F4101Z1 LTLV EditRetrieveDeletePackaging LeadtimeLevel Leadtime Level 96 85 Leadtime Level
112 F4101Z1 LTMF EditRetrieveDeletePackaging LeadtimeMfg Leadtime MFG 97 86 Leadtime MFG
113 F4101Z1 LTCM EditRetrieveDeletePackaging LeadtimeCum Leadtime Cumulative 98 87 Leadtime Cum
114 F4101Z1 OPC EditRetrieveDeletePackaging OrderPolicyCode Order Policy Code 99 88 O P  Default = 1
115 F4101Z1 OPV EditRetrieveDeletePackaging OrderPolicyValue Value - Order Policy 100 89 Order Policy Value
116 F4101Z1 ACQ EditRetrieveDeletePackaging AcctingCostQty Quantity - Accounting Cost 101 90 Acct Cost Quantity  Default = 100000000
117 F4101Z1 MLQ EditRetrieveDeletePackaging MfgLeadtimeQty Quantity - MFG Leadtime 102 91 MFG Leadtime Quantity
118 F4101Z1 LTPU EditRetrieveDeletePackaging LeadtimePerUnit Leadtime Per Unit 103 92 Leadtime Per Unit
119 F4101Z1 MPSP EditRetrieveDeletePackaging PlanTimeFenceRule Planning Time Fence Rule 104 93 T F
120 F4101Z1 MRPP EditRetrieveDeletePackaging FixedVariableLeadtime Fixed or Variable Leadtime 105 94 FV Lt  Default = F
121 F4101Z1 ITC EditRetrieveDeletePackaging IssueTypeCode Issue Type Code 106 95 Is Cd  Default = I
122 F4101Z1 ORDW F4101ProcessMasterData OrderWithYN Order With 107 111 O W  Default = N
123 F4101Z1 MTF1 EditRetrieveDeletePackaging PlanningTimeFenceDays Planning Time Fence Days 108 99 Plan Time Fence
124 F4101Z1 MTF2 EditRetrieveDeletePackaging FreezeTimeFenceDays Freeze Time Fence Days 109 100 Frz Time Fence
125 F4101Z1 MTF3 EditRetrieveDeletePackaging MsgTimeFenceDays Message Time Fence Days 110 101 Msg Time Fence
126 F4101Z1 MTF4 EditRetrieveDeletePackaging TimeFence4 MPS/MRP Time Fence 4 111 102 Time Fence
127 F4101Z1 MTF5 EditRetrieveDeletePackaging TimeFence5 Shipment Leadtime Offset 112 103 Ship Offset
128 F4101Z1 EXPD F4101ProcessMasterData ExpediteDamperDays Expedite Damper Days 113 112 Expedite Damper
129 F4101Z1 DEFD F4101ProcessMasterData DeferDamperDays Defer Damper Days 114 113 Defer Damper
130 F4101Z1 SFLT F4101ProcessMasterData SafetyLeadtime Safety Leadtime 115 115 Safety Leadtime
131 F4101Z1 MAKE F4101ProcessMasterData MakeBuyCode Make/Buy Code 116 116 N A
132 F4101Z1 COBY F4101ProcessMasterData CoproductsByproducts Co-Products/By-Products/Intermediate 117   Co By  Default = C
133 F4101Z1 LLX F4101ProcessMasterData LowLevelCode Low Level Code 118 118 LL Cd
134 F4101Z1 CMGL F4101ProcessMasterData AllocateByLot Commitment Method 119 119 C M  Default = 1
135 F4101Z1 COMH F4101ProcessMasterData CommitmentSpecificDays Commitment - Specific (Days) 120 131 Spec Comm
136 F4101Z1 AVRT EditRetrieveDeletePackaging AverageQueueTimeHours Replenishment Hours - Standard 145 132 Replenishment Hours
137 F4101Z1 UPCN EditRetrieveDeletePackaging UPCNumber UPC Number 131   UPC
138 F4101Z1 SCC0 EditRetrieveDeletePackaging AggregateSCCCodePI0 Aggregate SCC Code (PI=0) 132   SCC (PI=0)
139 F4101Z1 UMDF EditRetrieveDeletePackaging UnitofMeasureAggregateUPC Unit of Measure - Aggregate UPC 134   UPC UOM
140 F4101Z1 UMS0 EditRetrieveDeletePackaging UnitofMeasureSCCPI0 Unit of Measure - SCC(PI=0) 135   SCC0 UOM
141 F4101Z1 UMUP EditRetrieveDeletePackaging UnitofMeasureUPC Unit of Measure - UPC 133   UPC UOM
142 F4101Z1 UMS1 EditRetrieveDeletePackaging UnitofMeasureSCCPI1 Unit of Measure - SCC(PI=1) 136   SCC1 UOM
143 F4101Z1 UMS2 EditRetrieveDeletePackaging UnitofMeasureSCCPI2 Unit of Measure - SCC(PI=2) 137   SCC2 UOM
144 F4101Z1 UMS3 EditRetrieveDeletePackaging UnitofMeasureSCCPI3 Unit of Measure - SCC(PI=3) 138   SCC3 UOM
145 F4101Z1 UMS4 EditRetrieveDeletePackaging UnitofMeasureSCCPI4 Unit of Measure - SCC(PI=4) 139   SCC4 UOM
146 F4101Z1 UMS5 EditRetrieveDeletePackaging UnitofMeasureSCCPI5 Unit of Measure - SCC(PI=5) 140   SCC5 UOM
147 F4101Z1 UMS6 EditRetrieveDeletePackaging UnitofMeasureSCCPI6 Unit of Measure - SCC(PI=6) 141   SCC6 UOM
148 F4101Z1 UMS7 EditRetrieveDeletePackaging UnitofMeasureSCCPI7 Unit of Measure - SCC(PI=7) 142   SCC7 UOM
149 F4101Z1 UMS8 EditRetrieveDeletePackaging UnitofMeasureSCCPI8 Unit of Measure - SCC(PI=8) 143   SCC8 UOM
150 F4101Z1 WTRQ EditRetrieveDeletePackaging ItemWeightRequired Item Weight Required Y/N 147   Item Weight Required  Default = N
151 F4101Z1 EQTY EditRetrieveDeletePackaging PalletType Container Code 146   Container Code
152 F4101Z1 POC EditRetrieveDeletePackaging Payonconsumption Issue and Receipt 144 133 R                       Default = 0
153 F4101Z1 MCU F4101ProcessMasterData
EditRetrieveDeleteCategoryCodes
EditRetrieveDeletePackaging
EditRetrieveDeleteBranchQuantity
UpdateItemProcessData
EditRetrieveDeleteManufacturing
EditRetrieveDeleteCustService
EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteItemProfile		 CostCenter Business Unit   4 Business Unit
154 F4101Z1 MMCU   CostCenterAlt Branch     Branch                      Not in use
155 F4101Z1 VEND F4101ProcessMasterData PrimaryLastVendorNo Primary / Last Supplier Number   28 Primary Supplier
156 F4101Z1 ORIG F4101ProcessMasterData CountryOfOrigin Country of Origin   32 Country of Origin
157 F4101Z1 ROPI EditRetrieveDeleteBranchQuantity ReorderPointInput Reorder Point - Input   33 ROP
158 F4101Z1 ROQI EditRetrieveDeleteBranchQuantity ReorderQuantityInput Reorder Quantity - Input   34 Reorder Quantity
159 F4101Z1 RQMX EditRetrieveDeleteBranchQuantity ReorderQuantityMaximum Reorder Quantity - Maximum   35 Reorder Qty Max
160 F4101Z1 RQMN EditRetrieveDeleteBranchQuantity ReorderQuantityMinimum Reorder Quantity - Minimum   36 Reorder Qty Min
161 F4101Z1 WOMO   OrderMultiples Quantity - Order Multiples (SO/PO)   37 Order Multiples
162 F4101Z1 SERV F4101ProcessMasterData ServiceLevel Service Level   38 Srvc Lvl
163 F4101Z1 SAFE EditRetrieveDeleteBranchQuantity SafetyStockDaysSupply Safety Stock   39 Safety Stock
164 F4101Z1 FUF1 F4101ProcessMasterData ApplyFreight AIA Document Flag   76 AIA Doc  Default = Y
165 F4101Z1 TX F4101ProcessMasterData TaxableYN1 Purchasing Taxable (Y/N)   77 Tax Y/N  Default = Y
166 F4101Z1 TAX1 F4101ProcessMasterData TaxableYN Sales Taxable (Y/N)   78 Taxable                       Default = Y
167 F4101Z1 MRPD F4101ProcessMasterData ItemDisplayCode Item Display Code   80 Dsp Cod  Default = 2
168 F4101Z1 MRPC F4101ProcessMasterData NetChangeFlag Flag - Net Change   81 Net Chg
169 F4101Z1 UPC EditRetrieveDeleteBranchQuantity UnitsPerContainer Units - Per Container   82 Units Per Container  Default = 000000000000001
170 F4101Z1 MERL EditRetrieveDeletePackaging MeRevisionLevel Item Revision Level   84 Itm Rev
171 F4101Z1 ECO EditRetrieveDeletePackaging EngineerChngOrderNo ECO Number   96 ECO Number
172 F4101Z1 ECTY EditRetrieveDeletePackaging EngineeringChngReason Engineering Change Reason   97 ECO Re
173 F4101Z1 ECOD EditRetrieveDeletePackaging DateEngineerChgeDate Date - Engineering Change Date   98 Change Date
174 F4101Z1 MOVD F4101ProcessMasterData MoveHours Move Hours - Standard   104 Move Hours
175 F4101Z1 QUED EditRetrieveDeletePackaging QueueHours Queue Hours - Standard   105 Queue Hours
176 F4101Z1 SETL EditRetrieveDeletePackaging SetupLaborHrsStdr Setup Labor - Standard   106 Setup Labor
177 F4101Z1 SRNK EditRetrieveDeletePackaging ShrinkFactor Shrink Factor   107 Shrink Factor
178 F4101Z1 SRKF EditRetrieveDeletePackaging ShrinkFactorMethod Shrink Factor Method   108 Srink Meth  Default = %
179 F4101Z1 TIMB EditRetrieveDeletePackaging TimeBasisCode Time Basis Code   109 Time Basis  Default = 4
180 F4101Z1 BQTY F4101ProcessMasterData UnitsBatchQuantity Units - Batch Quantity   110 Batch Quantity
181 F4101Z1 MULT EditRetrieveDeleteBranchQuantity QtyOrderMultiples Quantity - Order Multiples (MRP)   114 Order Multiple
182 F4101Z1 LFDJ F4101ProcessMasterData DateLifo Date - Future Use   117 Future Use Date
183 F4101Z1 MLOT F4101ProcessMasterData ItemMultipleDates Mix Dates / Lots (Y/N)   139 Mix D/L  Default = Y
184 F4101Z1 LOCN F4101ProcessMasterData Location Location     Location                      Not In Use
185 F4101Z1 LOTN F4101ProcessMasterData Lot Lot/Serial Number     Lot Serial Number Not In Use
186 F4101Z1 URCD F4101ProcessMasterData UserReservedCode User Reserved Code 121 120 User Code
187 F4101Z1 URDT F4101ProcessMasterData UserReservedDate User Reserved Date 122 121 User Date
188 F4101Z1 URAT F4101ProcessMasterData UserReservedAmount User Reserved Amount 123 122 User Amount
189 F4101Z1 URAB F4101ProcessMasterData UserReservedNumber User Reserved Number 124 123 User Number
190 F4101Z1 URRF F4101ProcessMasterData UserReservedReference User Reserved Reference 125 124 User Reference
191 F4101Z1 TORG   TransactionOriginator Transaction Originator     Transaction Originator To be updated through R4101Z1I
192 F4101Z1 STAW   Status9 Status     Status                      To be updated
193 F4101Z1 EFFT   EffectiveThruDate Effective - Thru Date     Effective Thru To be updated
194 F4101Z1 DOC F4101ProcessMasterData
EditRetrieveDeleteCategoryCodes
EditRetrieveDeletePackaging
EditRetrieveDeleteBranchQuantity
UpdateItemProcessData
EditRetrieveDeleteManufacturing
EditRetrieveDeleteCustService
EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteItemProfile		 DocVoucherInvoiceE Document (Voucher, Invoice, etc.)     Document Number To be updated
195 F4101Z1 DCT F4101ProcessMasterData
EditRetrieveDeleteCategoryCodes
EditRetrieveDeletePackaging
EditRetrieveDeleteBranchQuantity
UpdateItemProcessData
EditRetrieveDeleteManufacturing
EditRetrieveDeleteCustService
EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteItemProfile		 DocumentType Document Type     Do Ty To be updated
196 F4101Z1 USER   UserId User ID 126 125 User ID To be updated
197 F4101Z1 PID   ProgramId Program ID 127 126 Program ID To be updated
198 F4101Z1 JOBN   WorkStationId Work Station ID 128 127 Work Stn ID To be updated
199 F4101Z1 UPMJ   DateUpdated Date - Updated 129 128 Date Updated To be updated
200 F4101Z1 TDAY   TimeOfDay Time of Day 130 129 Time of Day To be updated
201 F4101Z1 TMPL F4101ProcessMasterData Template Template 148   Template
202 F4101Z1 SEG1 F4101ProcessMasterData Segment1 Segment 1 149   Segment 1
203 F4101Z1 SEG2 F4101ProcessMasterData Segment2 Segment 2 150   Segment 2
204 F4101Z1 SEG3 F4101ProcessMasterData Segment3 Segment 3 151   Segment 3
205 F4101Z1 SEG4 F4101ProcessMasterData Segment4 Segment 4 152   Segment 4
206 F4101Z1 SEG5 F4101ProcessMasterData Segment5 Segment 5 153   Segment 5
207 F4101Z1 SEG6 F4101ProcessMasterData Segment6 Segment 6 154   Segment 6
208 F4101Z1 SEG7 F4101ProcessMasterData Segment7 Segment 7 155   Segment 7
209 F4101Z1 SEG8 F4101ProcessMasterData Segment8 Segment 8 156   Segment 8
210 F4101Z1 SEG9 F4101ProcessMasterData Segment9 Segment 9 157   Segment 9
211 F4101Z1 SEG0 F4101ProcessMasterData Segment10 Segment 10 158   Segment 10
212 F4101Z1 AING EditRetrieveDeletePackaging ActiveIngredientFlag Active Ingredient Flag 160 134 Active Ingredient  Default = 0
213 F4101Z1 CMDM F4101ProcessMasterData CommitmentDateMethod Commitment Date Method 162 136 Commitment Date Method  Default = 1
214 F4101Z1 DPPO F4101ProcessMasterData DualPickingProcessOption Dual Picking Process Option 173   Picking Process
215 F4101Z1 DUAL F4101ProcessMasterData DualUnitOfMeasureItem Dual Unit  Of Measure Item 174   Dual Item
216 F4101Z1 LECM F4101ProcessMasterData LotExpirationDateCalculationMethod Lot Expiraton Date Calculation Method 163 137 Exp. Date Calc Method  Default = 1
217 F4101Z1 MIC F4101ProcessMasterData MatrixControlled Matrix Controlled 159   Matrix Controlled
218 F4101Z1 XDCK F4101ProcessMasterData CrossDockFlag Cross-Docking Flag 175 147 Cross Docked
219 F4101Z1 DLTL F4101ProcessMasterData DualTolerance Dual Tolerance 172   Dual Tolerance
220 F4101Z1 LEDD F4101ProcessMasterData LotEffectiveDefaultDays Lot Effective Default Days 164 138 Lot Effective Days
221 F4101Z1 PEFD F4101ProcessMasterData PurchasingEffectiveDays Purchasing Effective Days 165 140 Purch. Eff. Days
222 F4101Z1 SBDD F4101ProcessMasterData SellByDefaultDays Sell By Default Days 166 141 Sell By Days
223 F4101Z1 U1DD F4101ProcessMasterData UserLotDate1DefaultDays User Lot Date 1 Default Days 167 142 User Lot Date 1 Days
224 F4101Z1 U2DD F4101ProcessMasterData UserLotDate2DefaultDays User Lot Date 2 Default Days 168 143 User Lot Date 2 Days
225 F4101Z1 U3DD F4101ProcessMasterData UserLotDate3DefaultDays User Lot Date 3 Default Days 169 144 User Lot Date 3 Us
226 F4101Z1 U4DD F4101ProcessMasterData UserLotDate4DefaultDays User Lot Date 4 Default Days 170 145 User Lot Date 4 Days
227 F4101Z1 U5DD F4101ProcessMasterData UserLotDate5DefaultDays User Lot Date 5 Default Days 171 146 User Lot Date 5 Days
228 F4101Z1 BBDD F4101ProcessMasterData BestBeforeDefaultDays Best Before Default Days 161 135 Best Before Days
229 F4101Z1 LOTC   LotStatusCodeExpanded Lot Status Code Expanded 180 152 Lot Status Code
230 F4101Z1 EXPI   ExplodeItem10 Explode Item (1/0) 190   E I  Default = 1
231 F4101Z1 CONB   Consumable Consumable 183   Consumable
232 F4101Z1 PRI1   PriorityOneAlertLevel Priority One Alert Level 185 154 Priority One Alert Level
233 F4101Z1 PRI2   PriorityTwoAlertLevel Priority Two Alert Level 186 155 Priority Two Alert Level
234 F4101Z1 GCMP   Composition Composition 184   Composition
235 F4101Z1 APSC   ConstraintsFlag Constraints Flag 181 153 Constraints Flag
236 F4101Z1 CMETH   MethodOfCostCalcula Method - Configurator Costing 189   Configurator Costing Method
237 F4101Z1 LAF   LotAuditFlag Lot Audit Flag 176 148 Lot Audit Flag
238 F4101Z1 LTFM   SpecialLotFormat Special Lot Format 177 149 Special Lot Format
239 F4101Z1 RWLA   RestrictWoLotAssignment Restrict Work Order Lot Assignment 178 150 Restrict WO Lot Assignment
240 F4101Z1 LNPA   LotNumberPreAsignment Lot Number Pre-Assignment 179 151 Lot Number Pre-Assignment
241 F4101Z1 ASHL   AllowShippingHeldLots Allow Shipping of Held Lots 187 157 Allow Shipping of Held Lots
242 F4101Z1 VMINV   VendorManagedInventory Vendor Managed Inventory 188   Vendor Managed Inventory
243 F4101Z1 LTCV   LeadtimeConversionFactor Leadtime Conversion Factor   156 Leadtime Conv Factor
244 F4101Z1 OPTH EditRetrieveDeletePackaging MinOperationalThreshold Minimum Operational Threshold 191 158 Min Operational Threshold
245 F4101Z1 CUTH EditRetrieveDeletePackaging MinCumulativeThreshold Minimum Cumulative Threshold 192 159 Min Cumulative Threshold
246 F4101Z1 UMTH EditRetrieveDeletePackaging OperationalThresholdUOM Operational Threshold Unit of Measure 193 160 Operational Threshold UOM
247 F4101Z1 LMFG EditRetrieveDeletePackaging LeanFlag Lean Manufacturing Flag 194 161 Lean Manufacturing Flag
248 F4101Z1 LINE EditRetrieveDeletePackaging LineIdentifier Line/Cell Identifier 195 162 Line/Cell Identifier
249 F4101Z1 DFTPCT   TotalProductCycleTime Total Product Cycle Time 196 163 Total Product Cycle Time
250 F4101Z1 KBIT EditRetrieveDeletePackaging KanbanItem Kanban Item 197 164 Kanban Item
251 F4101Z1 DFENDITM EditRetrieveDeletePackaging DFEndItemFlag Demand Flow End Item Flag 198 165 DFM End Item
252 F4101Z1 KANEXLL EditRetrieveDeletePackaging KanbanExplodeToLowerLevel Kanban Explode to Lower Level 199 166 Kanban Explode to Lower Level
253 F4101Z1 SCPSELL EditRetrieveDeletePackaging Sellable Sellable Item 200 167 Sellable Item
254 F4101Z1 MOPTH EditRetrieveDeletePackaging MaxOperationalThreshold Maximum Operational Threshold 201 168 Max Operational Threshold
255 F4101Z1 MCUTH EditRetrieveDeletePackaging MaxCumulativeThreshold Maximum Cumulative Threshold 202 169 Max Cumulative Threshold
256 F4101Z1 CUMTH EditRetrieveDeletePackaging CumulativeThresholdUOM Cumulative Threshold Unit of Measure 203 170 Cumulative Threshold UOM
257 F4101Z1 ATPRN   ATPRuleName ATP Rule Name 204 171 ATP Rule Name
258 F4101Z1 ATPCA   CheckATP Check ATP 205 172 Check ATP
259 F4101Z1 ATPAC   ATPComponents ATP Components 206 173 ATP Components
260 F4101Z1 COORE F4101ProcessMasterData CountryOfOriginRequired Country of Origin Required Flag 207 174 Origin Required
261 F4101Z1 VCPFC   ATOForecastControl ATO Forecast Control 208 175 ATO Forecast Control
262 F4101Z1 PNYN F4101ProcessMasterData ProductionNumberControlled Production Number Controlled 209 176 Production Number Controlled  Default = N

Note:

Back To Top



F4101Z1A mapping

SeqTableAliasBusiness FunctionData ItemDescriptionF4101 SeqF4102 SeqColumn Title 1Column Title 2Others
1 F4101Z1A EDUS*   EdiUserId EDI - User ID     User ID
2 F4101Z1A EDBT*   EdiBatchNumber EDI - Batch Number     Batch Number
3 F4101Z1A EDTN*   EdiTransactNumber EDI - Transaction Number     Transaction Number
4 F4101Z1A EDLN*   EdiLineNumber EDI - Line Number     Line Number
5 F4101Z1A EDCT   EdiDocumentType EDI - Document Type     Doc Ty
6 F4101Z1A TYTN   TypeTransaction Type - Transaction     Trans Type
7 F4101Z1A EDFT   EdiTranslationFormat EDI - Translation Format     Translation Format
8 F4101Z1A EDDT   EdiTransmissionDate EDI - Transmission Date     Tran Date
9 F4101Z1A DRIN   DirectionIndicator Direction Indicator     Dir Ind
10 F4101Z1A EDDL   EdiDetailLinesProcess EDI - Detail Lines Processed     # Lines
11 F4101Z1A EDSP   EdiSuccessfullyProcess EDI - Successfully Processed     S P Set 'Y' if successful
12 F4101Z1A PNID   TradingPartnerId Trading Partner ID     Trading Partner
13 F4101Z1A TNAC EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteCustService
EditRetrieveDeleteItemProfile		 TransactionAction Transaction Action     Tr Ac
14 F4101Z1A ITBR EditRetrieveDeleteBulkData
EditRetrieveDeleteCustService		 UpdateItemBranch Update Item Branch     Update Item/Branch
15 F4101Z1A MCU EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteCustService
EditRetrieveDeleteItemProfile		 CostCenter Business Unit   4 Business Unit
16 F4101Z1A ITM EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteCustService
EditRetrieveDeleteItemProfile		 IdentifierShortItem Item Number - Short 1 1 Short Item No Can be updated
17 F4101Z1A MMCU   CostCenterAlt Branch     Branch
18 F4101Z1A KIT   ItemNumberShortKit Parent (short) Item Number     Parent Item No
19 F4101Z1A NMFC EditRetrieveDeleteShipping FreightClassificationNMF Freight Classification (NMFC)     NMFC
20 F4101Z1A NMFI EditRetrieveDeleteShipping NMFCItemNumber NMFC Item Number     NMFC Item #
21 F4101Z1A STCC EditRetrieveDeleteShipping StandardTransportationCo Standard Transportation Commodity Code     Std. Trans. Comm. Code
22 F4101Z1A FRT1 EditRetrieveDeleteShipping FreightCategoryCode1 Freight Category Code 1     Freight Code 1
23 F4101Z1A FRT2 EditRetrieveDeleteShipping FreightCategoryCode2 Freight Category Code 2     Freight Code 2
24 F4101Z1A HSCD EditRetrieveDeleteShipping HarmonizedShippingCode Harmonized Shipping Code     Harmonized Ship Code
25 F4101Z1A PDCG EditRetrieveDeleteShipping ProducerofGoods Producer of Goods     Prdc Good
26 F4101Z1A RETPOL EditRetrieveDeleteCustService ReturnPolicy Return Policy     Return Policy
27 F4101Z1A SRYN   EligibleSupplierRecovery Eligible Supplier Recovery     Eligible Supplier Recovery
28 F4101Z1A IBYN EditRetrieveDeleteCustService CreateEquipmentMaster Create Equipment Master     Create Equipment Master
29 F4101Z1A PFCT EditRetrieveDeleteShipping PreferenceCriteria Preference Criteria     Prf Crt
30 F4101Z1A ECCN EditRetrieveDeleteShipping ExportControlCommodityNu Export Control Commodity Number     Exprt Ctl. Comm. Nbr.
31 F4101Z1A DMFR EditRetrieveDeleteShipping DomesticForeignCommodity Domestic/Foreign Commodity     Dm Fr
32 F4101Z1A UNNA EditRetrieveDeleteShipping UNorNANumber UN or NA Number     UN/NA Nbr.
33 F4101Z1A HZDC EditRetrieveDeleteShipping HazardClassorDivision Hazard Class or Division     Hzd Cls
34 F4101Z1A HZDL EditRetrieveDeleteShipping HazardLabel Hazard Label     Hzd. Lbl.
35 F4101Z1A FPNT EditRetrieveDeleteShipping FlashPointTemperature Flash Point Temperature     Flash Point
36 F4101Z1A STPU EditRetrieveDeleteShipping StrappingTemperatureUnit Temperature Type     T T
37 F4101Z1A PKGP EditRetrieveDeleteShipping PackagingGroup Packaging Group     Pkg Grp
38 F4101Z1A PKIN EditRetrieveDeleteShipping PackagingInstructions Packaging Instructions     Pkg. Ins.
39 F4101Z1A SRSK EditRetrieveDeleteShipping SubsidiaryRisk Subsidiary Risk     Sub Rsk
40 F4101Z1A PDGR EditRetrieveDeleteBulkData ProductGroupFrom Product Group 29 26 Prd Grp
41 F4101Z1A DSGP EditRetrieveDeleteBulkData DispatchGrp Dispatch Group 30 27 Dsp Grp
42 F4101Z1A DNTB EditRetrieveDeleteBulkData DensityTable Density Table     Dens Tabl
43 F4101Z1A STCN EditRetrieveDeleteBulkData StandardTempConvTableFor Standard Temp Conv Table For Inventory     Conv Tabl
44 F4101Z1A RPTM EditRetrieveDeleteBulkData ReportingTemperatureTabl Reporting Temperature Table     Temp Tabl
45 F4101Z1A RQTC EditRetrieveDeleteBulkData RequiresTemperatureConve Requires Temperature Conversion Flag     T C
46 F4101Z1A LPGP EditRetrieveDeleteBulkData LPGProductYN LPG Product Y/N     L P
47 F4101Z1A CAVP EditRetrieveDeleteBulkData CalculateVapor Calculate Vapor     C V
48 F4101Z1A DNTY EditRetrieveDeleteBulkData Density Density                          Density
49 F4101Z1A DNTP EditRetrieveDeleteBulkData DensityTypeAtStandardTem Density Type - At Standard Temperature     D T
50 F4101Z1A DETP EditRetrieveDeleteBulkData DensityTemperature Density Temperature     Density Temp
51 F4101Z1A DTPU EditRetrieveDeleteBulkData DensityTemperatureUnit Temperature Type     T U
52 F4101Z1A COEX EditRetrieveDeleteBulkData CoefficientofExpansion Coefficient of Expansion     Coefficient of Expansion
53 F4101Z1A TMMN EditRetrieveDeleteBulkData TemperatureMinimum Temperature Minimum     Temp Minimum
54 F4101Z1A TPUM EditRetrieveDeleteBulkData TemperatureUnit Temperature Type - Minimum     T T
55 F4101Z1A TMMX EditRetrieveDeleteBulkData TemperatureMaximum Temperature Maximum     Temp Maximum
56 F4101Z1A TPUX EditRetrieveDeleteBulkData TemperatureUnitMaximum Temperature Type - Maximum     T T
57 F4101Z1A DSMN EditRetrieveDeleteBulkData DensityMinimum Density Minimum     Density Minimum
58 F4101Z1A DNTM EditRetrieveDeleteBulkData DensityTypeMinimum Density Type - Minimum     D T
59 F4101Z1A DNMX EditRetrieveDeleteBulkData DensityMaximum Density Maximum     Density Maximum
60 F4101Z1A DNTX EditRetrieveDeleteBulkData DensityTypeMaximum Density Type - Maximum     D T
61 F4101Z1A LPGV EditRetrieveDeleteBulkData LPGVaporTemperature LPG Vapor Temperature     LPG Vap Temp
62 F4101Z1A TPU1 EditRetrieveDeleteBulkData TemperatureUnitLPGVapour Temperature Type - LPG Vapour     T T
63 F4101Z1A MNVC EditRetrieveDeleteBulkData MinimumVolumeCorrectionF Minimum Volume Correction Factor     Min VCF
64 F4101Z1A MXVC EditRetrieveDeleteBulkData MaximumVolumeCorrectionF Maximum Volume Correction Factor     Max VCF
65 F4101Z1A RTOB EditRetrieveDeleteBulkData ReconcileTOB Reconcile     R E
66 F4101Z1A PRODM EditRetrieveDeleteCustService ProductModel Product Model     Product Model
67 F4101Z1A PRODF EditRetrieveDeleteCustService ProductFamily Product Family     Product Family
68 F4101Z1A MCUZ EditRetrieveDeleteCustService CostCenterAlternative Business Unit - Alt     Business Unit
69 F4101Z1A DCD1 EditRetrieveDeleteCustService DispositionCode1 Disposition Code 1     Dispostion Code 1
70 F4101Z1A DCD2 EditRetrieveDeleteCustService DispositionCode2 Disposition Code 2     Dispostion Code 2
71 F4101Z1A DCD3 EditRetrieveDeleteCustService DispositionCode3 Disposition Code 3     Dispostion Code 3
72 F4101Z1A DCD4 EditRetrieveDeleteCustService DispositionCode4 Disposition Code 4     Dispostion Code 4
73 F4101Z1A DCD5 EditRetrieveDeleteCustService DispositionCode5 Disposition Code 5     Dispostion Code 5
74 F4101Z1A CRTU EditRetrieveDeleteCustService CreatedByUser Created by user     Created By User
75 F4101Z1A RPRBL EditRetrieveDeleteCustService RepairableFlag Repairable Flag     Repairable
76 F4101Z1A RTRND EditRetrieveDeleteCustService ReturnableFlag Returnable Flag     Returnable
77 F4101Z1A CCOST EditRetrieveDeleteCustService SWMCostType S/WM Cost Component     S/WM Cost Type
78 F4101Z1A STVL EditRetrieveDeleteBulkData StrategicVolume Strategic Volume     Strategic Volume
79 F4101Z1A BUM0 EditRetrieveDeleteBulkData UnitofMeasure10 Unit of Measure     UM
80 F4101Z1A LRFG EditRetrieveDeleteBulkData LoadRackFlag Gantry/Load Rack Flag     L R
81 F4101Z1A HCOR EditRetrieveDeleteBulkData HydrometerCorrection Hydrometer Correction     H C
82 F4101Z1A ACOR EditRetrieveDeleteBulkData AirCorrectYN Air Correction     A C
83 F4101Z1A ABBL EditRetrieveDeleteBulkData AutoBatchBlend Auto Batch Blend     A B
84 F4101Z1A ATWH EditRetrieveDeleteBulkData AutoWarehouse Auto Warehouse     A W
85 F4101Z1A RPLT EditRetrieveDeleteBulkData ReplenishmentType Replenishment Type     Rep Typ
86 F4101Z1A BCAT EditRetrieveDeleteBulkData BlendCategory Blend Categories     Tnk Cat
87 F4101Z1A FCAT EditRetrieveDeleteBulkData FillCategory Fill Category     Fill Cat
88 F4101Z1A RECD EditRetrieveDeleteBulkData ReconciledThruDate Reconciled Thru Date     Reconcile Thru Date
89 F4101Z1A MLIT EditRetrieveDeleteItemProfile MultipleItem Mix Items (Y/N)     M I
90 F4101Z1A MLOT EditRetrieveDeleteItemProfile ItemMultipleDates Mix Dates / Lots (Y/N)   139 Mix D/L
91 F4101Z1A SPLP EditRetrieveDeleteItemProfile SplitPutawayYN Split Lines - Putaway (Y/N)     S P
92 F4101Z1A PTPH EditRetrieveDeleteItemProfile 12PhasePutaway 1 or 2 Phase Putaway     P T
93 F4101Z1A PKPH EditRetrieveDeleteItemProfile 12PhasePicking 1 or 2 Phase Picking     P K
94 F4101Z1A RPPH EditRetrieveDeleteItemProfile 12PhaseReplenishmen 1 or 2 Phase Replenishment     R P
95 F4101Z1A DEFI EditRetrieveDeleteItemProfile ItemLocDefinition Definition     Item/Loc Characteristic
96 F4101Z1A LCOD EditRetrieveDeleteItemProfile CodeLocationTaxStat Code - Location Tax Status     Tx Cd
97 F4101Z1A DLTN EditRetrieveDeleteItemProfile DefaultLocation Overflow Location     Overflow Location
98 F4101Z1A VLOC EditRetrieveDeleteItemProfile LocationVariance Location - Variance     Variance Location
99 F4101Z1A HLOC EditRetrieveDeleteItemProfile LocationHolding Location - Holding     Holding Location
100 F4101Z1A PPUT EditRetrieveDeleteItemProfile LocationPrimaryPutaw Location - Base Putaway     Base Putaway Location
101 F4101Z1A PPIK EditRetrieveDeleteItemProfile LocationPrimaryPicki Location - Base Picking     Base Picking Location
102 F4101Z1A PRLC EditRetrieveDeleteItemProfile LocationPrePick Location - Pre-Pick     Pre-Pick Location
103 F4101Z1A MPTL EditRetrieveDeleteItemProfile MergePartials Merge Partials     Merge Partials
104 F4101Z1A MUMS EditRetrieveDeleteItemProfile MergeUnitofMeasureStructures Merge Unit of Measure Structures     Merge UM Structures
105 F4101Z1A FIFR EditRetrieveDeleteItemProfile FIFOReceiptDate FIFO Receipt Date     FIFO Rec Dt.
106 F4101Z1A URCD EditRetrieveDeleteItemProfile UserReservedCode User Reserved Code 121 120 User Code
107 F4101Z1A URDT EditRetrieveDeleteItemProfile UserReservedDate User Reserved Date 122 121 User Date
108 F4101Z1A URAT EditRetrieveDeleteItemProfile UserReservedAmount User Reserved Amount 123 122 User Amount
109 F4101Z1A URAB EditRetrieveDeleteItemProfile UserReservedNumber User Reserved Number 124 123 User Number
110 F4101Z1A URRF EditRetrieveDeleteItemProfile UserReservedReference User Reserved Reference 125 124 User Reference
111 F4101Z1A TORG   TransactionOriginator Transaction Originator     Transaction Originator
112 F4101Z1A STAW   Status9 Status     Status                      To be updated (To write report status)
113 F4101Z1A EFFT   EffectiveThruDate Effective - Thru Date     Effective Thru
114 F4101Z1A DOC EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteCustService
EditRetrieveDeleteItemProfile		 DocVoucherInvoiceE Document (Voucher, Invoice, etc.)     Document Number To be updated
115 F4101Z1A DCT EditRetrieveDeleteBulkData
EditRetrieveDeleteShipping
EditRetrieveDeleteCustService
EditRetrieveDeleteItemProfile		 DocumentType Document Type     Do Ty To be updated
116 F4101Z1A USER   UserId User ID 126 125 User ID To be updated
117 F4101Z1A PID   ProgramId Program ID 127 126 Program ID To be updated
118 F4101Z1A JOBN   WorkStationId Work Station ID 128 127 Work Stn ID To be updated
119 F4101Z1A UPMJ   DateUpdated Date - Updated 129 128 Date Updated To be updated
120 F4101Z1A TDAY   TimeOfDay Time of Day 130 129 Time of Day To be updated

Note:

Back To Top

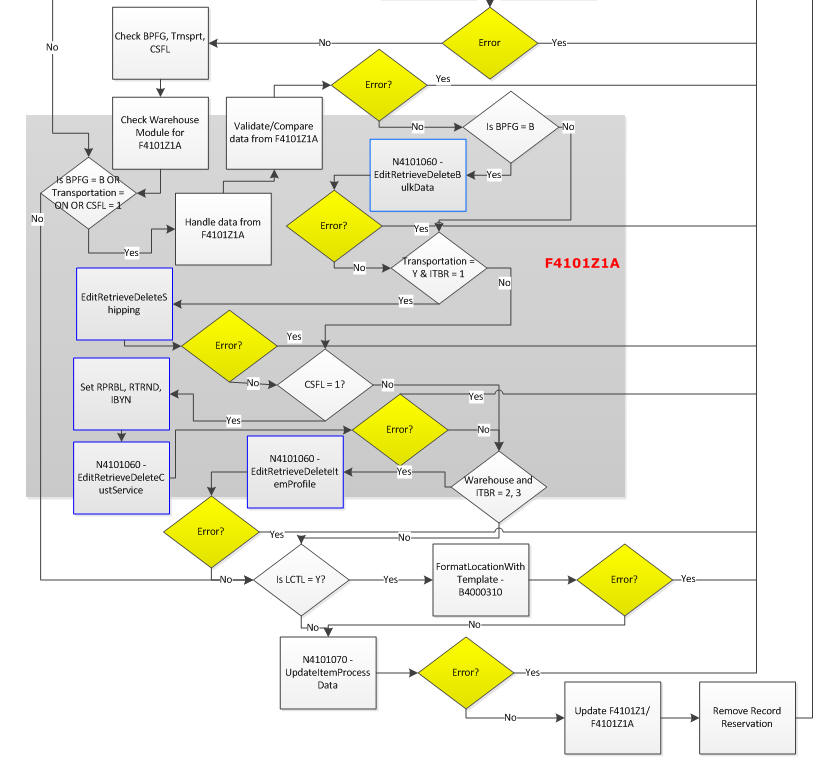

Simplified routine of R4101Z1I

Refer below,



Note: Refer to event rule of R4101Z1I for further detail.

Back To Top
