How to Output Record Count In Text File through Table Conversion

Purpose of Document

This document is to give a simple example to write records count in header of flat / text file output in your Table Conversion. Note that this is case study only and actual coding can be vary to meet your business requirement.

Business scenario:

We have to send out Business Unit information (F0006) per company with below Flat File format:

• Header: File Name, Record Count of Body
• Body: Sequence Number, Business Unit and Description
• Trailer / Footer: File name and total number of records (this is common way because we can't warranty all records will be converted)

So through this case study, you can put Record Count in Header, Sequence Number in Body and Total Number of Records in Trailer

Try this,

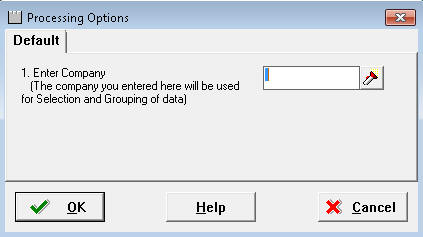

1. Create Processing Option data structure

   : In case you need to have more complicated selection/grouping you can add additional parameters.

2. Start Table Conversion Design

3. From Data Conversion Director, choose "Data Conversion"

4. At External Data, Select/Attach Processing Option created from step 1

   : Now processing option created at step 1 is attached to conversion application.

5. At Select Input, choose (source SQL format data) Table and drag and drop it to right hand side

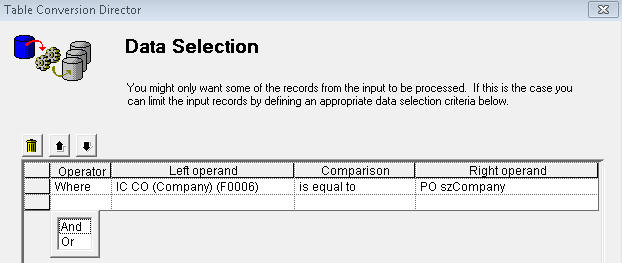

6. At Data Selection set selection based on Processing Option value

    : In case you have more than one parameter, implement it.

7. At Select Output, select tab (Text File) and type output file name (Path and file name including extension if needed) then click (Push Button) Use to move output to right hand side panel. Currently EnterpriseOne Table Conversion has only a single file name and file name can't be changed dynamically.

   : As stated above output format is written based on output file name you have defined here so it is your duty to set correct path and file name.

• To rename, refer to <Document 661013.1> E1: BSFN: How to Check Existence, Copy, Delete or Rename a Flat File?
• To set correct path refer to <Document 1305796.1> E1: 47: Representation of Path for EDI in EnterpriseOne.
• In case encoding is concerned, refer to <Document 626601.1> E1: TC: Flat File Encoding Configuration P93081 starting with EnterpriseOne 8.9.

8. On same screen, (push button) User Defined Format

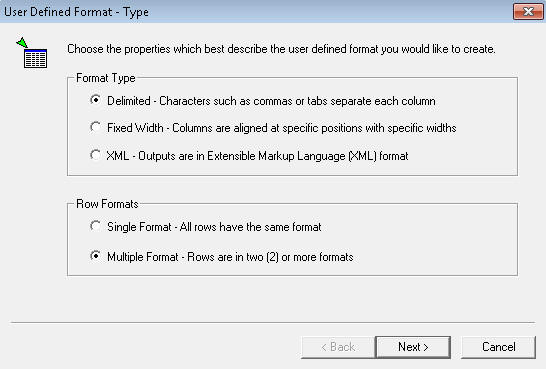

8-1. At User Defined Format - Type, choose Row Format - Multiple Format - Rows are in two (2) or more formats

8-2. At User Defined Format - Column Delimiter, set the value required (e.g., Textual Qualifier "Double Quotation")

8-3. At User Defined Format - Multiple Format Definition, set 3 (1. Header, 2. Body and 3. Trailer)

8-4. At User Defined Format - Multiple Format Names, set distinctive file name (e.g., 01. Header, 02. Body, 03. Trailer) this enable you to make some coding easily.

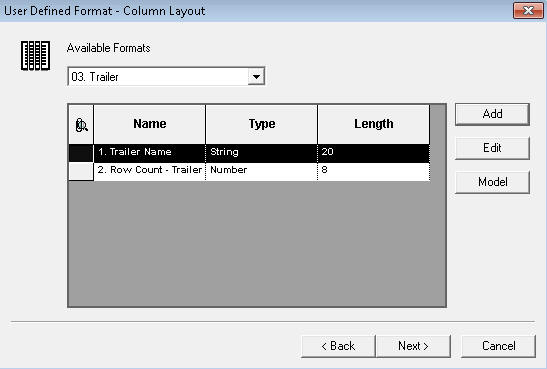

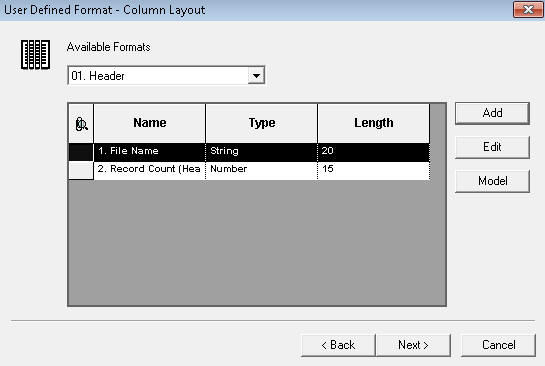

8-5. User Defined Format - Column Layout (repeat it for Header, Body and Trailer)

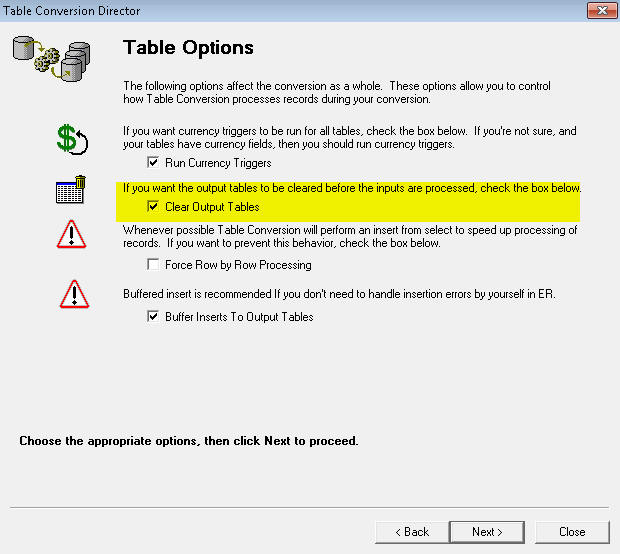

9. At Table Option, select "Clear Output Tables" otherwise values are to be appended based on existing file

   : Not to transmit duplicated information, turn on this option and rename then archive it in the designated folder.

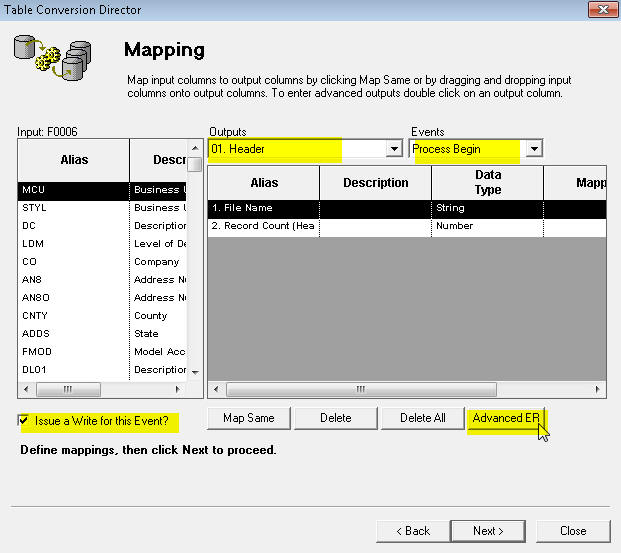

10. Write Header at Process Begin event

• Tick "Issue a Write for the Event?" to issue 'Insert Row' for Outputs you have defined
• Choose events "Process Begin"

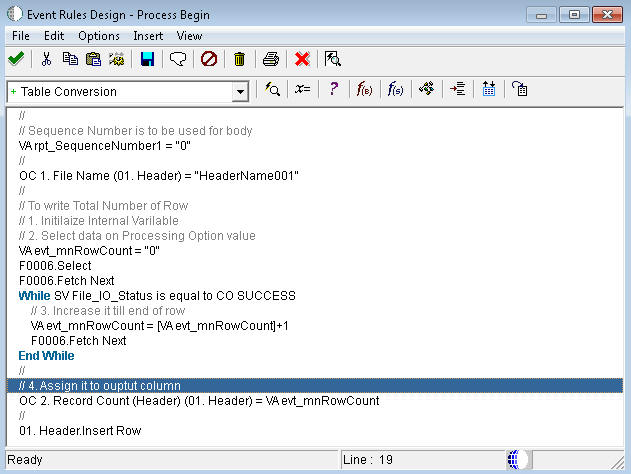

• Then click "Advanced ER" to write additional logic if needed.

• For this example, this event runs only once like wise Initialized Section in RDA.
• Table IO is used to calculate record count.
• Two variables are used one is to count rows for Trailer and the other one stores the record count used at Header.
• If needed, choose valid index for Table.Select and Table.Fetch Next (for instance, F0006.CO)

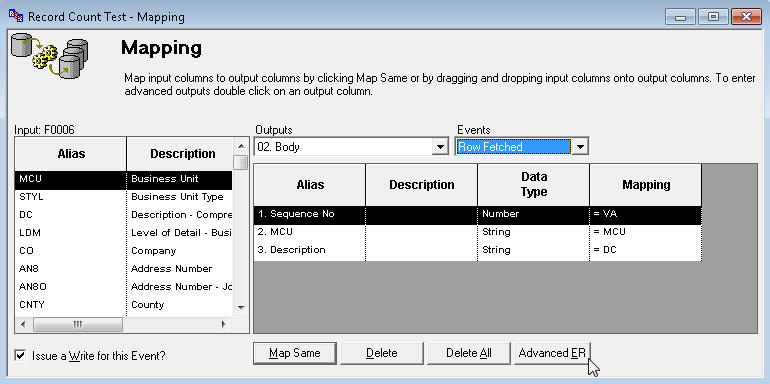

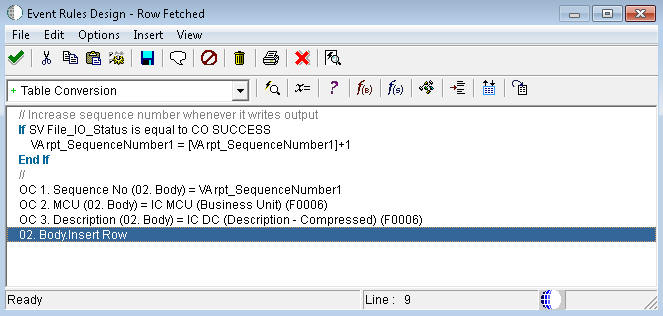

12. Write Body at Row Fetched event

• This event gets triggered whenever a new row found likewise Do Section event in RDA (Report Design Aid).
• Increase row count which is to be written in Body as Sequence Number and written as total number of line (which is always same with last sequence number) in Trailer

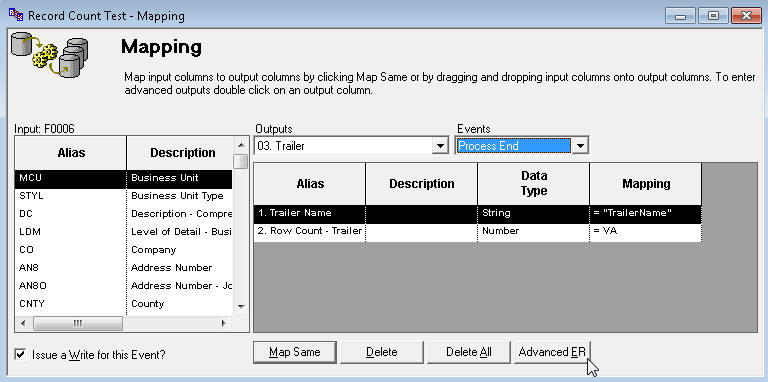

13. Write Trailer at Process End event

   : This event runs only once like End Section event in RDA.

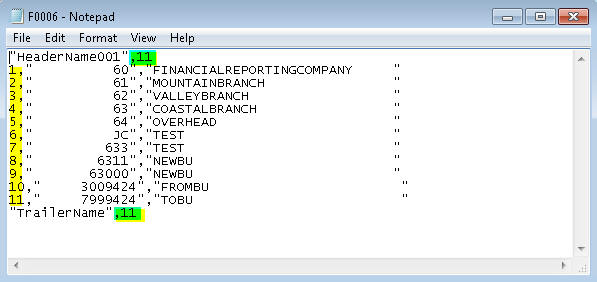

14. Run it and this is the text file created

Note: Though this is a case study and a simple implementation same routine can be expanded for more complicated conversion.
