How to Troubleshoot R41501 (Inventory to GL Reconciliation Update) and GPF1 (Inventory Flag)

Purpose of Document

This document is to guide user to have better understanding on how R41501 (Inventory to GL Reconciliation Update) is working?

For detail, refer to <Document 1678098.1> - E1: 41: 9.1 Enhancement - Inventory to G/L Reconciliation Process (P41500/R41500/R41501).

Below tables are to demonstrate as-is behavior of inventory transaction (example of P4114 - Inventory Adjustment). This simple transaction is to give you how Item Ledger File (F4111, namely Cardex) is written and how it corresponds to General Ledger (F0911) File which takes balanced figures with valid offset account.

Supposing that DMAAI (P40950) is defined as below,

AAI Number	Co	Do Ty	G/L Cat	Business Unit	Obj Acct	Sub	Others
4122	00200	IA	IN30	M30	1411		Inventory
4124	00200	IA	IN30	M30	6310		Expense of COGS

Refer to <Document 625475.1> E1: 40: Automatic Accounting Instructions for Distribution (AAI / DMAAI) [Video]

In adding Inventory Adjustment through P4114 which writes data into,

Item Ledger File (F4111)

Doc Co	Document Number	Do Ty	Pay Itm	JE Line Number	G/L Cat	Transaction Explanation	Extended Cost/Price	Program ID	others
00200	1038	IA	000	1	IN30	Inventory Adjustments	500	EP4114	Inventory

Corresponding data into Account Ledger (F0911)

Doc Co

Do Ty

Document Number

JE Line Number

Account Number

Business Unit

Obj Acct

Sub

Amount

Explanation Alpha Name

Program ID

Inventory Flag (GPF1)

Others

00200

1038

M30.1411

M30

1411

500

Inventory Adjustments

EP4114

Inventory

00200

1038

M30.6310

M30

6310

-500

Inventory Adjustments

EP4114

COGS

: Note that F0911.GPF1 flag is set '1' through inventory transaction (and which affects General Account)

In case Inventory Transaction, Sales Transaction and Procurement Transaction which affect F0911 did not set F0911.GPF1 flag correctly, check a certain routine which calls F0911FSEditLine (B0900049). For this example, XT4111Z1 (F4111EditLine) is responsible to set this flag in calling F0911FSEditLine.

Note: Possibly you may search for the fix through below business functions:

Inventory Transaction: F4111EditLine (XT4111Z1, F4111 Edit Line)
Sales Transaction: GetSalesAAIsAndCallF0911EditLine (B4200520, Sales Update, Get AAIs and Edit F0911 Entries)
Procurement Transaction: CreatePOReceiptJournalEntries (B4302510, Create PO Receipt Journal Entries)
Do not run this report again if you see F0911.GPF1 = '1' for Inventory Account because this report is meant to run when this flag was not set (e.g., transaction was performed through earlier EnterpriseOne application releases)

Case Study: In your running R41501 against the document above (1038|IA|00200), which updates JE Line number 2.00 which is COGS line. Why this is happening?

This type of issue can be coming in below settings,

AAI Number	Co	Do Ty	G/L Cat	Business Unit	Obj Acct	Sub	Others
4122	00001	IT	****		6310		COGS

The reason which updates cost line from F0911 is that,

Reads through all Object Account (OBJ) based on DMAAI for cost. So in reading DMAAI '4122' this routine stores the object account '6310'
Compare F0911.OBJ with the value returned above
Since one of DMAAI set the object account 6310 as a cost account, R41501 sets F0911.GPF1 = '1' (which is not what you want to have)

In case you have this type of issue, try as below,

Look for the F0911.OBJ which gets updated through R41501
Open table F4095 through Databrowser
Search for all DMAAIs which meets this object (refer below full list of DMAAI below)
Refine that DMAAI

Information written below is to explain what R41501 (Inventory to GL Reconciliation Update) performs:-

Note that actual routine is handled through business function UpdateGPFInF0911 (B4100961, Update GPF In F0911) called by R41501 (Inventory to GL Reconciliation Update)

Business Function: UpdateGPFInF0911 (B4100961, Update GPF In F0911)

Purpose:
Parameter:
- Data Structure: D4100961A - F4111 To F0911 Reconciliation Update

Parameter Name	Data Item	Data Type	Req/Opt	I/O/Both	Others
szDocumentType	DCT	char	OPT	NONE
mnDocumentNumber	DOC	MATH_NUMERIC	OPT	NONE
szDocumentCompany	KCO	char	OPT	NONE
jdGLDateBegin	DGL	JDEDATE	OPT	NONE
jdGLDateEnd	DGL	JDEDATE	OPT	NONE
szErrorID	DTAI	char	OPT	NONE
cSupressErrorMessage	EV01	char	OPT	NONE
mnBatchNumber	ICU	MATH_NUMERIC	OPT	NONE
szWOCompletionDocType	DCT	char	OPT	NONE
szWOIssueDocType	DCT	char	OPT	NONE
szLeanCompletionDocType	DCT	char	OPT	NONE
szLeanIssueDocType	DCT	char	OPT	NONE
mnDocumentOrderNumber	DOCO	MATH_NUMERIC	OPT	NONE
szScrapDocType	DCT	char	OPT	NONE
mnJobnumberA	JOBS	MATH_NUMERIC	OPT	NONE
szComputerID	CTID	char	OPT	NONE
cProofFinal	EV01	char	OPT	NONE

Detail Routine:-

First of all, check cTransactionType as below,

cTransactionType	Nature of Transaction	DMAAI	Explanation
1	Sales	4240	Inventory (SOI)
		4241	Inventory in Transit
2	Purchase	4310	Inventory (OPI)
		4326	Weight Tag Price Adjustment
		4330	Received /Vouchered (OPV)
		4338	Reprice Variance - Inventory
		4350	Purchase Tax Accrual (OPT)
		4385	Cost/Expense Adjustment (OPD)
3	Inventory (Others)	3110	Inventory/Row Material
		3130	Sub-Assmby/Finished Goods
		3140	Project Contra
		3910	Inventory Stock Valuation (Adjustment)
		4122	Inventory
		4134	Inventory (CDIV)
		4152	Inventory (PINV)
		4162	Inventory (AVCI)
		4172	Inventory (CI)
		4240
		4241
		4310
		4326
		4338
		4340	Exchange Rate
		4350
		4385

Note:

cTransactionType is determined by UDC 41/IN - Inventory Integrity Report
If UDC 41/IN does not have specific record it is set as 3 (which eventually check all DMAAIs which are related with Inventory or transaction which writes F4111)
Currently there is discrepancy between 4340 and 4350 in handling Procurement Transaction (need further clarification on this)

Simplified routine of UpdateGPFInF0911 (B4100961, Update GPF In F0911) called by R41501 (Inventory to GL Reconciliation Update)

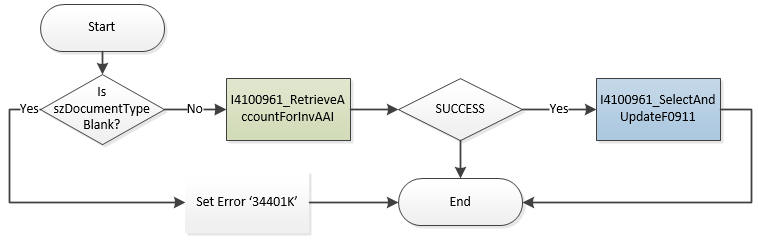

General Routine of B4100961

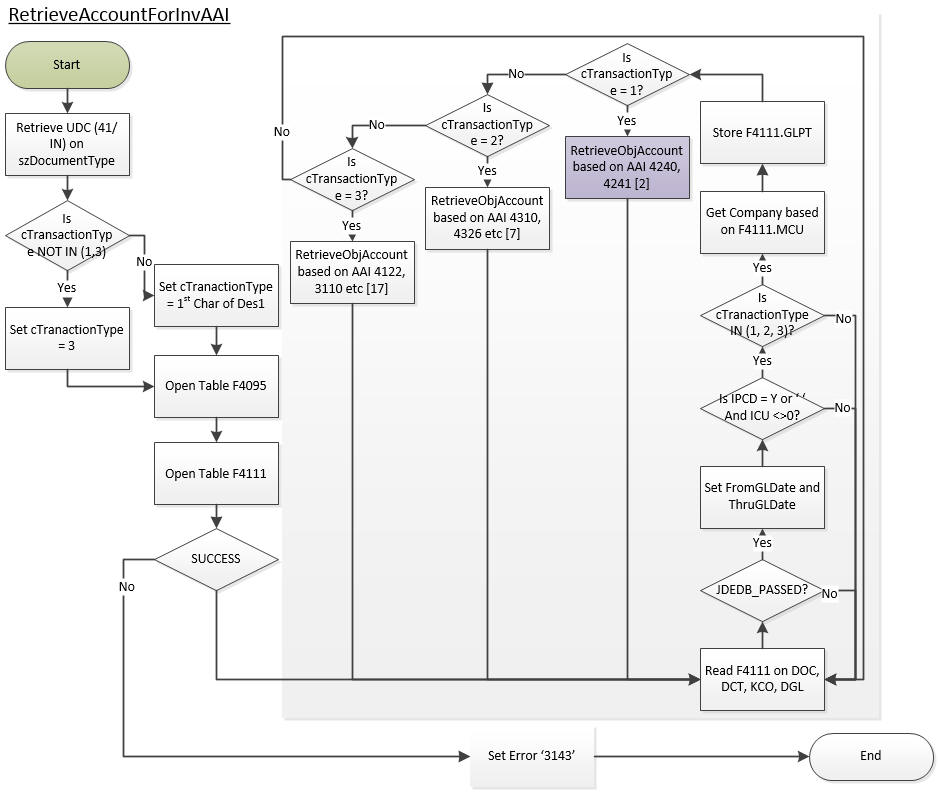

Subroutine/Subfunction I4100961_RetrieveAccountForInvAAI

Subroutine 1

Sub-routine2

Subroutine2

Sub-routine 3:

(* To be added *)

Related Query:

---| I4100961_RetrieveAccountForInvAAI
------| I4100961_RetrieveUDCRecords UDC 41|IN to get cTransactionType (*cTransactionType = dsF0005Fetch.drdl01[0] ;)
------| Prepare Select data from F4111 on (ILDOC = dsDS->mnDocumentNumber And ILDCT = dsDS->szDocumentType And ILKCO = dsDS->szDocumentCompany And ILDGL >= dsDS->jdGLDateBegin And ILDGL <= dsDS->jdGLDateEnd)
sql> SELECT * FROM PRODDTA.F4111 WHERE ( ILDOC = 975.000000 AND ILDCT = 'IA' AND ILKCO = '00200' AND ILDGL >= 116091 AND ILDGL <= 116091 ) ORDER BY ILGLPT ASC
------| JDB_Fetch (F4111)
------| WHILE
---------| Check input GLDates
---------| is F4111.IPCD IN ('Y', 'y', ' ', '\0') AND F4111.ICU <> 0
------------| is cTransactionType IN ('1', '2', '3')
---------------| retrieve company on F4111.MCU
---------------| get F4111.GLPT
---------------| Load the AAIs and Get the Accoount Numbers from F4095 based on the transaction type
------------------| cTransactionType = 1 (sales): 4240, 4241
------------------| cTransactionType = 2 (purchase): 4310, 4326, 4385, 4330, 4340, 4350, 4338
------------------| cTransactionType = 3 (all): 4122, 3110, 3130, 3910, 4134, 4152, 4162, 4172, 4240, 4241, 4310, 4326, 4385, 3140, 4340, 4350, 4338

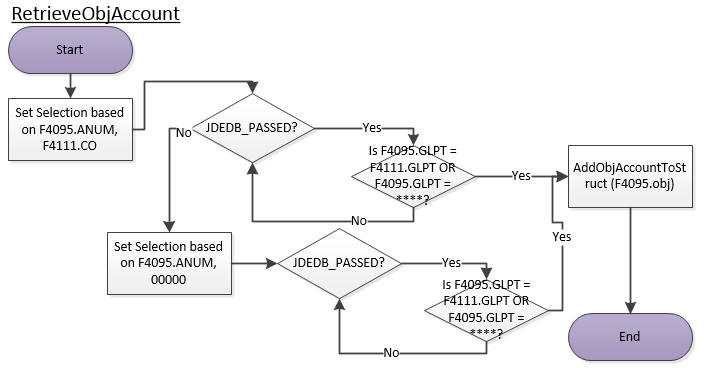

---------------------| I4100961_RetrieveObjAccount
------------------------| JDB_SelectKeyed on (F4095.ANUM, CO, GLPT with same way to retrive DMAAI - Most specific to most generic) *** Refer DMAAI listed above - reads specific to generic
---------------------------| JDB_Fetch (F4095)
---------------------------| WHILE
------------------------------| I4100961_AddObjAccountToStruct
---------------------------------| Save F4095.obj into szObjAccount (= aStrObjAccount[iCounter])
------------------------------| JDB_Fetch
---------------------------| End WHILE
---------| JDB_Fetch
------| End WHILE

---| I4100961_SelectAndUpdateF0911
------| I4100961_PrepareSelectF0911 on (GLDOC = F3106 DOCO And GLDCT = lpDS->szDocumentType And GLKCO = lpDS->szDocumentCompany And GLDGL >= lpDS->jdGLDateBegin And GLDGL <= lpDS->jdGLDateEnd)
sql> SELECT * FROM PRODDTA.F0911 WHERE ( GLDOC = 975.000000 AND GLDCT = 'IA' AND GLKCO = '00200' AND GLDGJ >= 116091 AND GLDGJ <= 116091 ) ORDER BY GLDCT ASC,GLDOC ASC,GLKCO ASC,GLDGJ DESC,GLJELN ASC,GLLT ASC,GLEXTL ASC

------| JDB_Fetch (F0911)
------| WHILE loop
---------| is F0911.gpf1 <> '1' and F0911.lt not in ('CA', 'XA', 'YA', 'ZA')
------------| I4100961_RtvObjAccountToStruct based on F0911.OBJ per cTransactionType ***
---------------| Check exiting object array from Compare F0911.OBJ with all F4095.OBJ stored by I4100961_AddObjAccountToStruct
------------| Is Record met?
---------------| cProofFinal = '1'
------------------| I4100961_UpdateGLRecord
---------------------| I4100961_PrepareUpdateSelectF0911 on DOC, DCT, KCO, LT (=AA), DGJ, JELN, EXTL
------------------------| (SUCCESS) set F0911.gpf1 = 1
sql> UPDATE PRODDTA.F0911 SET GLGPF1='1' WHERE ( GLDCT = 'IA' AND GLDOC = 975.000000 AND GLKCO = '00200' AND GLDGJ = 116091 AND GLJELN = 2.000000 AND GLLT = 'AA' AND GLEXTL = ' ' ) AND ( GLDOC = 975.000000 AND GLDCT = 'IA' AND GLKCO = '00200' AND GLLT = 'AA' AND GLDGJ = 116091 AND GLJELN = 2.000000 AND GLEXTL = ' ' )

------------------| UpdatedGLRecordCache
---------| JDB_Fetch
------| end WHILE

To be completed by July-31-2016
