How To Print Runtime Data Selection of Driver Section of Report Using B4309570/B4302450

Purpose of Document

How to print runtime data selection of Driver section in current or another report

Before Start

• Functionality is available for EnterpriseOne application release 9.1 and above
• Below business functions are explained through this document
  • UBERetrieveDataSelection (B4309570, UBE Retrieve Data Selection)
  • UBERetrieveDataSelectionCache (B4302450, UBE Retrieve Data Selection Cache)
• Selection information can be written only when event takes place later than Initialize Section of Main Section (the section where SELECT statement is constructed - this is true that you can add additional data selection through Set User Selection)
• This follows typical cache routine - Write, Read and terminate as below

Simplified routine

1. The end of Initialize Section event of Driver Section: write/load data selection cache
2. Do Section event of main section which calls conditional section to print Data Selection: read data selection cache
3. End Section event of Driver Section where you want to write Data Selection records: terminate cache

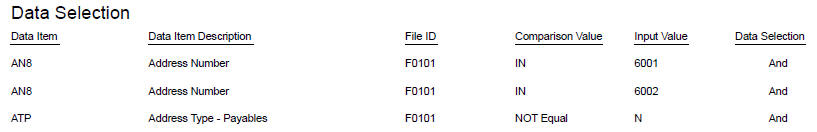

Example of output

Example of Selection

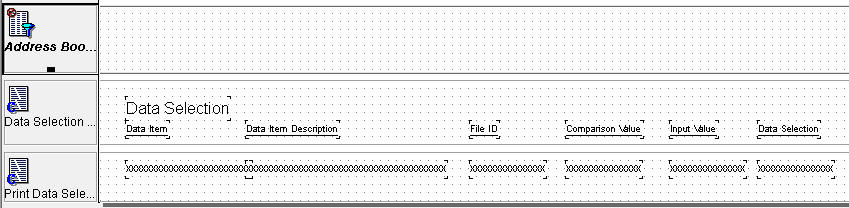

Example of report template

Example of Implementation

Detail code is exposed to explain the business function used below for demonstration only

*** Break In Code ***

***********************************************************************
GLOBALS: Variables (Global)
***********************************************************************
rpt_szMachineKey_MKEY
rpt_mnJobnumber_JOBS
rpt_idCacheCursor_GENID
rpt_szErrorID_DTAI
rpt_cColumnHeadingPrint_EV01
rpt_cDataSelectionPrint_EV01
rpt_idPPATMessages_GENLNG

=======================================================================
SECTION: Address Book, Full View [COLUMNAR SECTION] (S2)
=======================================================================
OBJECT: SECTION
EVENT: Initialize Section
-----------------------------------------------------------------------
// add data selection via ER Set User Selection
Set Selection Append Flag(<Yes>)
Set User Selection(BC Search Type (F0101)(AT1), <Equal To>, "E", <And>)
//
// The following code is to Load the UBE Data Selection
Get Local Computer ID  ** B9800181_GetLocalComputerId
    VA rpt_szMachineKey_MKEY <- BF szMachineKey
Get Internal Next NUmber  ** B0000564_GetInternalNextNumber
    VA rpt_mnJobnumber_JOBS <- BF mnJobnumberA
UBE Retrieve Data Selection ** B4309570_UBERetrieveDataSelection
    SL VersionName -> BF szVersion
    SL ReportName -> BF szProgramId
    <Zero> -> BF cMode
    VA rpt_szMachineKey_MKEY -> BF szComputerID
    VA rpt_mnJobnumber_JOBS -> BF mnJobnumberA
    SL SectionNumber -> BF mnSectionID

-----------------------------------------------------------------------
EVENT: Do Section
-----------------------------------------------------------------------
 // To print values only once - so it will be set 1 after printing it
 If VA rpt_cDataSelectionPrint_EV01 is not equal to "1"
   Do Custom Section(RS Data Selection Query)
End If
//
If VA rpt_cColumnHeadingPrint_EV01 is not equal to "1"
  Do Custom Section(RS Print Columns)
End If

-----------------------------------------------------------------------
EVENT: End Section
-----------------------------------------------------------------------
// Termiate Data Selection Cache
UBE Retrieve Data Selection Cache  ** B4302450_UBERetrieveDataSelectionCache
    "8" -> BF szCacheActionCode
     VA rpt_szErrorID_DTAI <- BF szErrorMessageID
     VA rpt_idCacheCursor_GENID <> BF idCacheCursor
     VA rpt_mnJobnumber_JOBS -> BF mnJobnumberA
     VA rpt_szMachineKey_MKEY -> BF szComputerID

=======================================================================
SECTION: Data Selection Query [GROUP SECTION] (S3)
=======================================================================
OBJECT: SECTION
EVENT: End Section
-----------------------------------------------------------------------
// Read all cache loaded at Initialized Section event
// So when there is no more cache error 078M is to be issued to stop loop
UBE Retrieve Data Selection Cache  ** B4302450_UBERetrieveDataSelectionCache
    "6" -> BF szCacheActionCode
    "2" -> BF mnNumberKeys
    "1" -> BF cSuppressErrorMessage
    VA rpt_szErrorID_DTAI <- BF szErrorMessageID
    VA rpt_idCacheCursor_GENID <> BF idCacheCursor
    VA rpt_mnJobnumber_JOBS -> BF mnJobnumberA
    VA rpt_szMachineKey_MKEY -> BF szComputerID
    RV Comparison <- BF szCompareValue
    RV DataSelection <- BF szAndOr
    RV DataItem <- BF szDataItem
    RV FileID <- BF szTable
    RV InputValue <- BF szValue

While VA rpt_szErrorID_DTAI is equal to or empty <Blank>

// (Optional) To describe description of column
Retrieve Data Dictionary Alpha Desc  ** B9200002_GetDDAlphaDescription
    RV DataItem -> BF szDataItem
    RV DataItmDes <- BF szDescriptionAlpha
Do Custom Section(RS Print Data Selection)
// To read next row
UBE Retrieve Data Selection Cache  ** B4302450_UBERetrieveDataSelectionCache
    "6" -> BF szCacheActionCode
    "2" -> BF mnNumberKeys
    "1" -> BF cSuppressErrorMessage
    VA rpt_szErrorID_DTAI <- BF szErrorMessageID
    VA rpt_idCacheCursor_GENID <> BF idCacheCursor
    VA rpt_mnJobnumber_JOBS -> BF mnJobnumberA
    VA rpt_szMachineKey_MKEY -> BF szComputerID
    RV Comparison <- BF szCompareValue
    RV DataSelection <- BF szAndOr
    RV DataItem <- BF szDataItem
    RV FileID <- BF szTable
    RV InputValue <- BF szValue

End While

// Not to print it again
VA rpt_cDataSelectionPrint_EV01 = "1"

// Terminate cache which is already printed
UBE Retrieve Data Selection Cache  ** B4302450_UBERetrieveDataSelectionCache
   "8" -> BF szCacheActionCode
   VA rpt_szErrorID_DTAI <- BF szErrorMessageID
   VA rpt_idCacheCursor_GENID <> BF idCacheCursor
   VA rpt_mnJobnumber_JOBS -> BF mnJobnumberA
   VA rpt_szMachineKey_MKEY -> BF szComputerID

*** Break In Code ***
