Software Systems Engineering Process

Software Development Process Improvement Plan for eOne

 Dong Myeong Seo

Table of Contents

1       Project Outline

1.1         Purpose

1.2         Scope

1.3         Definition, Acronym, and Abbreviation

1.4         Overview

2       Process Improvement Background

2.1         Software Process improvement (SPI) Methods

2.1.1     IDEAL Model

2.1.2     SPICE Model

2.1.3     CMMI Staged Maturity Model

2.1.4     Sprint Change Method as Software Process Improvement

2.2         Agile Approach for Software Process Improvement

3       Best Software Practices for Process Improvement

3.1         Problem Identification

3.2         Effective Solution Identification

3.2.1     Reverse Engineering

3.2.2     Feature-Driven Development

3.2.3     Scrum

3.3         Solution Justification

3.4         Solution Implementation and Communication Plan

3.4.1     Solution Implementation

3.4.2     Communication Plan

4       Metrics and Measurement Process Improvement

4.1         SPI Initiatives

4.2         Metrics

4.3         Measurements Plan

4.4         Data Collection Approach - The Goal/Question/Metric Method (GQM)

4.5         Challenges in measurement data collection and evaluation

4.6         Solution to tackle challenges

5       Software Quality Assurance Process Improvement

5.1         Software Quality Assurance Process

5.1.1     SQA in Requirements Development Process

5.1.2     SQA in Product Integration Process

5.1.3     SQA in Verification and Validation

5.2         Process Improvement Identification through SQA

5.3         SQA Implementation and Its Communication Plan

5.4         Justification

6       Risk Management Process Improvements

6.1         Risk Assessment

6.2         Risks affect Process Improvement in SDLC

6.3         Process Deficiencies

6.4         Implementation and Communication Plan

6.5         Solution Justification

References

1              Project Outline

1.1       Purpose

This document is to seek for the opportunity to build Software Process Improvement (SPI) plan document for eOne in developing a light Enterprise Resource Planning (ERP) software as an enterprise solution to the market in Indonesia. This documents shall deal with,

• Process and Software Process
• Industry accepted SPI methods
• Software development best practice for SPI improvement
• Measurement and assessment of SPI improvement
• Software Quality Assurance in software development process
• Risk management process improvement

1.2       Scope

This document builds complete software process improvement plan for eOne in developing and maintaining a light ERP software. This software development process improvement document can be reused for similar projects in the future in developing the enterprise solutions for small and medium organization.

1.3       Definitions, Acronyms, and Abbreviations

Table 1 describes acronyms, abbreviations, and description used in this document.

Table 1. Acronyms & Abbreviations

Note: this table is to be updated when plan gets moving on.

1.4       Overview

eOne is a small consulting firm focusing on Enterprise Resource Planning (ERP) software consulting with 100 employees in various cities in Indonesia. The organization comprises mainly three areas – management, business analyst, and developers.

This project seeks for the opportunity to improve the software process in developing light ERP software through reviewing existing process models, practices, Software Process Improvement (SPI) frameworks, and building the organization specific SPI model/framework for effective development and maintenance of light ERP software.

2              Process Improvement Background

Process is means to produce a product through the integration of tools, people, and procedure in engineering process.  Software process is the set of practices and tasks to build and enhance software, which is the sequenced and organized tasks to be performed by a procedure (Saiedian, 2005). The purpose of process model is to produce quality software timely within its budget. Here reviews the industry accepts software process improvement (SPI) methods, its advantage and disadvantage, and selection of SPI methods for this project.

2.1       Software Process improvement (SPI) Methods

SPI is essential to improve the quality of software, where the software improvement can be accomplished using SPI methods. SPI is a framework to identify potential problems and inefficiencies in Software Development Life Cycle (SLDC) to implement and to devise possible solutions through proper analysis and improvement of software development process.

Some of well perceived methods are Six Sigma, IDEAL model, Software Process Improvement and Capability Determination (SPICE) model, Capability Maturity Model (CMM), International Organization for Standardization (ISO) model, and lastly Sprint in Agile Software Life Cycle.

2.1.1      IDEAL Model

As a federal funded research and development center, the Software Engineering Institute (SEI) develops IDEAL model in1996 for software process improvement, which is named by the initial of five phases - Initiating, Diagnosing, Establishing, Acting, and Learning phases. Figure 1 depicts five phases in detail (McFeeley, 1996).

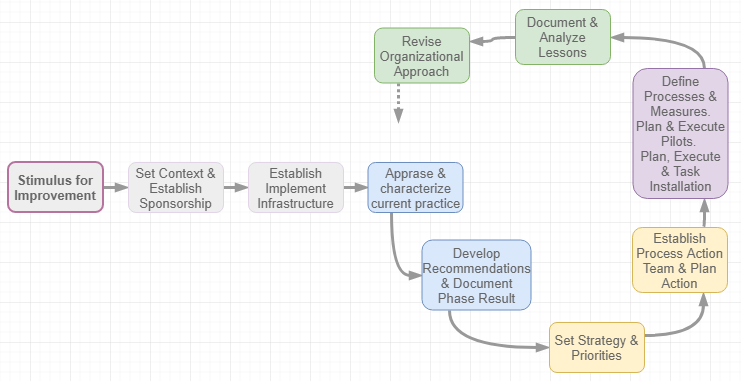

Figure 1. The IDEAL Model

• Initiating phase: as the initial steps, which establish the infrastructure of Software Process Improvement (SPI) including high level SPI plan, its schedule, major functional elements high level SPI plan, its schedule, major functional elements through the management steering group (MSG), software engineering process group (SEPG), and other organizational entity;
• Diagnosing phase: this phase links the continuous software process improvement path;
• Establishing phase: the management team develops/updates a SPI strategic action plan;
• Acting phase: this phase implements the developed improvement and puts into practice in the organization; and
• Learning/Leveraging phase: prepare for next diagnosing phase along with tuning opportunity.

The advantage of IDEAL model is various disciplines which suits for long-term improvement strategy. As figure 1 reads this method is a continuous improvement model (Anees, 2017). IDEAL model supplements the process improvement plan in the long run. So this process model will be adapted in implementing a hybrid approach between maturity approach and agile approach for eOne to develop software process improvement plan.

2.1.2      SPICE Model

2.1.3      CMMI Staged Maturity Model

The Capability Maturity Model (CMM) is developed in 1991 by Carnegie Mellon Software Engineering Institute (SEI) to help the organization improve the process in developing software. This model attempts to integrate the rich asset of capability models based on the notion of process maturity, which evolves to an integrated capability model (CMMI). So CMMI supersedes CMM framework and integrates it with other capacity maturity model to overcome weakness of CMM. Some literature categorizes it into the staged CMMI model and the continuous CMMI model. The latter does not classify the organization per discrete levels, unlike earlier CMM model. Figure 3 depicts the process area defined in the managed level in the staged CMMI model (Sommerville, 2016).

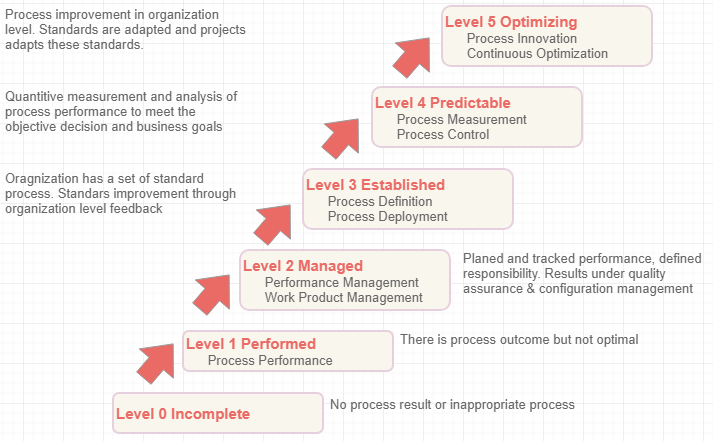

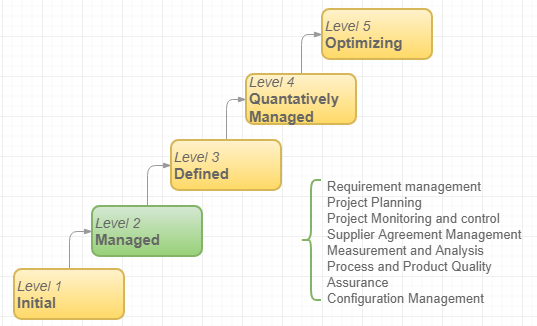

Figure 3. The CMMI Staged Maturity Model

The disadvantage of the staged CMMI model is that each maturity level has its own goals and practices and assumed all these goals need completing before moving on to next phase. The overcome this advantage, the continuous CMMI model is available. CMMI process model is to be discarded for actual implementation of process model because eOne is too new and small organization to implement this.

2.1.4      Sprint Change Method as Software Process Improvement

Agile determines documentation does not help to improve the development process supposing that the requirements continuously changing supposing that the process improvement is resulted from work improvement. In this context, the main goal of Agile model is to able you to reach there step by step, or repeating the iterative nature of software development incremental shape as depicted in figure 4.

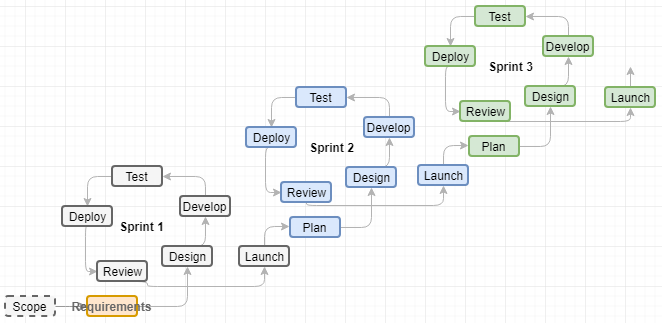

Figure 4. Sprints in Agile Methods

Supposing that change must be adaptive, Agile methods are the natural choice for change project. Study shows that a CMMI maturity level is significant improvement which takes roughly takes two years where this time frame naturally induces changes including new products, new competitors, and restructuring of organization (Foegen et al., 2009).

2.2       Agile Approach for Software Process Improvement

There are two distinctive approaches to meet the goal of software development process improvement. One is the maturity approach, which focuses on process improvement and project management by introducing good software engineering practice to an organization with goals of improving product quality and the predictability of process. Generally, the process maturity approach is based on plan-driven development which increases overhead, as result, activities do not translate into programming activities. Another is the Agile approach, which emphasizes the overhead reduction in software development life cycle (SLDC) with characteristics of rapid delivery of functionality and responsiveness to the change of requirements. Agile approaches focus on the code to develop by minimizing formality and documentation (Sommerville, 2016).

eOne is a small organization in developing a light ERP software where a light ERP has the architecture style is a layered style with its pattern – Model, View, and Controller (MVC) to develop various features in composite design pattern. Since ERP comprises multiple modules which repeats its pattern, I believe Agile approach for the software process improvement is well suited.

Through Agile approach, eOne can (Foegen et al., 2009),

• Identify and resolve issues as early as possible;
• Learn how the process improvements work and how difficulties be tackled;
• Adapt to change business needs;
• Respond to feedback and lessons learned; and
• Adopt the vision and goals from CMMI.

The adhesion of a single approach may cause the project failure. It is important to adopt the vision, goals and status quo from maturity approach to produce quality product on time without exceeding budget even the Agile approach is proved to be most cost effective for small project for eOne and IDEAL suits as framework of process improvement. The reason for this argument is that the Agile approach may lack of the improvement in the life cycle independent process improvement which encompasses management (project management, quality management, and risk management), support (documentation, configuration management, quality assurance, and problem resolution), and customer-supplier (customer need management and customer support).

3              Best Software Practices for Process Improvement

Process model is to build quality software reasonably close to on time and without exceeding project’s budget. There are various process models to meet this goal. Some literature categorize prescriptive and non-prescriptive, or predictive and adaptive, others categorize it predictive (Waterfall, Waterfall with feedback, Incremental Waterfall, V-model), iterative (Prototypes, Spiral, Unified process, Cleanroom), and rapid application development (Agile, XP, Scrum, Lean, Crystal, Feature Driven Development, Agile Unified Process, Kanban). A certain process model gains popularity over another when it overlays the disadvantage of other process model (Stephens, 2015). Possible diagnostic methodology can follow the problem identification, effective solution identification, implement best solution, and finalize knowledge (implement and communication solution).

3.1       Problem Identification

Functional areas segregate the teams in eOne, which is based on the ERP suites as depicted in figure 5. Each team has five business analyst and ten developers where units includes Material Resource Planning (MRP), Shop Floor, Sales, Procurement, Account Receivable, Account Payable, General Ledger, Human Resource & Payroll, and other minor suites.

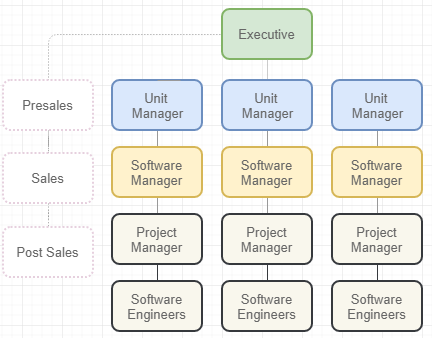

Figure 5. Current eOne Organization

This organization structure gives room for different approaches in software development process depending on the expertise of software managers. As result, current approaches which do not have common practices agreed upon have issues,

• Integrations between suites are difficult;
• Development is rather ad-hoc basis; and
• Hard to maintain.

The advancement of IT infrastructure in the region gives the opportunities for eOne to move forward from the traditional software development methodology. Figure 6 depicts the design process model – waterfall for software develoment lifecycle.

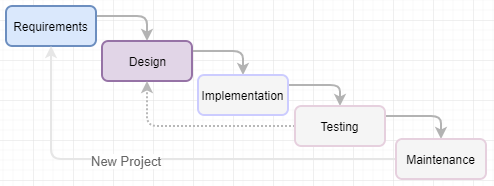

Figure 6. Waterfall Process Model

In this model, the requirements are precisely known in advance which huge amount of documentation, which will not change much during development.

However, the waterfall process model has some known disadvantages which sometimes affect the project success to meet the budget and time limitation. This rigid process model has disadvantages,

• Difficult to change in the steps and requirements;
• Lacking of client’s involvement; and
• Delayed testing.

3.2       Effective Solution Identification

The benchmark and reverse engineering approach reveal that current commercial ERP software can be characterized with the Layered Style using Model-View-Controller (MVC) pattern, where package is the combination of features with the composite design pattern. And each features are tightly integrated as depicted in Figure 7.

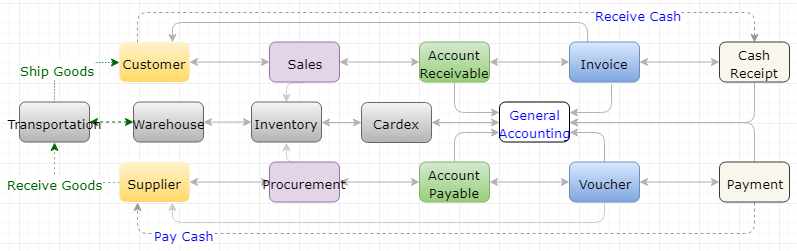

Figure 7. ERP Integration

To implement a light ERP with above software architecture in mind, here review the process models: Reverse Engineering for software reuse, Scrum and Feature-Driven Development (FDD) as agile approaches to overcome the disadvantage described in waterfall process model.

3.2.1      Reverse Engineering

Reverse engineering is a procedural effort of understanding, duplicating an existing software Oracle’s JD Edwards EnterpriseOne (E1), or components without using diagramming, modeling, or documentation through analysis of existing system (Singhal & Gandhi, 2014). It is hard to build the whole source codes for the enterprise solutions from scratch when time and budget are limited. Hence, reverse engineering is viable option for the project to build a light ERP software which is slimmed down version of E1 based on the expertise of business analysts and developers to build quality software without compromising its functionality.

This approach aims to enhance the proven and existing enterprise solution by simplifying existing package through reverse engineering tool. This tool encompasses software maintenance, re-use, re-engineering, evolution, and testing.

• Advantage: easier or minimum documentation, quicker design of system structure, and naturally faster implementation.
• Disadvantage: highly depending on the existing system E1 which can be practical limit for evolution because this approach may take disadvantage of current product.

3.2.2      Feature-Driven Development

Feature-Driven Development (FDD) is another incremental and iterative development model in Agile approach to accomplish comprehensive software using five phases depicted in (TatvaSoft, 2015). The five phases comprises developing model, building a feature list, planning by feature, designing by feature, and building by feature.

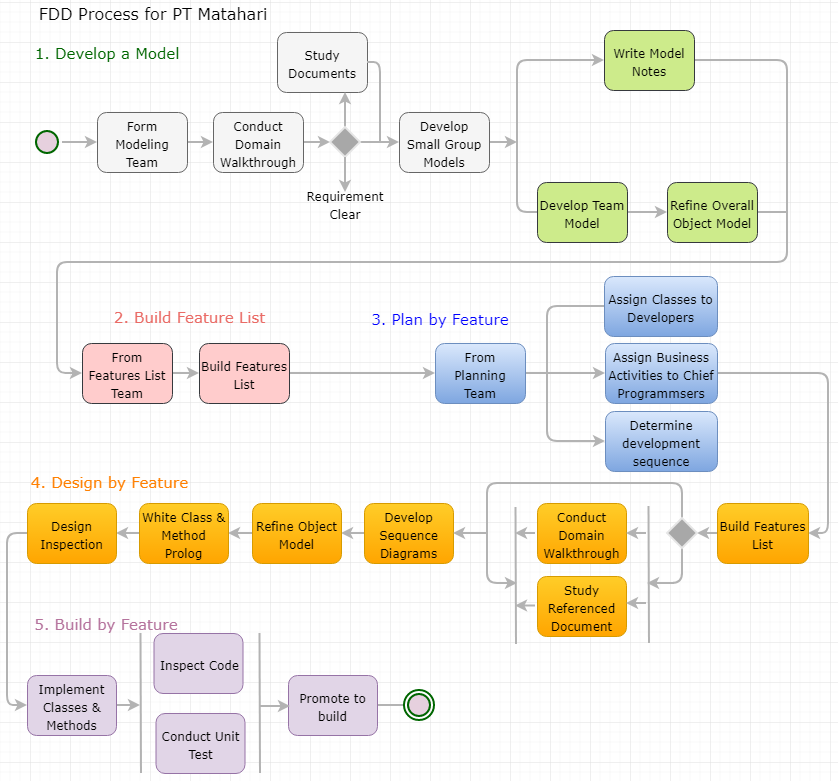

Figure 8. Feature-Driven Development

The reason for choosing this development model is that the ERP software is built based on the collection of comprehensive features to record and manipulate daily transactions without fail even it is a light one. The nature of ERP lies in its composite pattern using composite (can have other object underneath) and leaf (very last object in a tree) which has iterative and incremental nature by itself.

3.2.3      Scrum

The Scrum development methodology can be applied to almost any project when the requirements changes rapidly (TatvaSoft, 2015). In Scrum, the person who brings the software to life is the product owner who is responsible for the software through its life cycle. This scrum approach deals with vision, value, and validation in the hierarchy which starts from company vision, business strategy, production vision, product strategy, release plan, sprint plan, and daily plan in top down approach.

One of essential component of Scrum is Sprint. The Sprint is a time-box of a month to complete runnable product. Each Sprint can be considered as a small project which is a small program in the ERP suite. In this approach, the Sprint is a kind of the feedback loop to the product owner who creates the program.

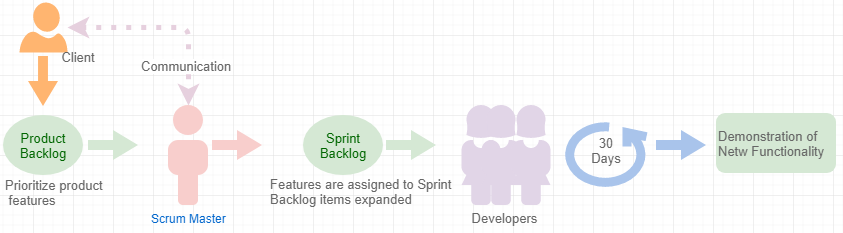

Figure 9. Linear View of Scrum Methodology

Scrum framework depends on pillars – transparency (regarding visibility), inspection (on Scrum artifacts and progress toward a Sprint Goal), and adaptation reads (including Sprint planning, Daily Scrum, Sprint Review, and Sprint Retrospective) as the Scrum Guide reads. As depicted in figure 9, basic elements of Scrum approaches are (McGreal & Jocham, 2018),

• Scrum Role: Product Owner, Development Team, and Scrum Master;
• Scrum Artifacts: the Product backlog, the Sprint backlog, and the Increment; and
• Scrum Events: the Sprint, the Sprint Planning, the Daily Scrum, the Sprint Review, and the Sprint Retrospective.

The light ERP software of eOne to develop is a series of iteration. For instance, sales order entry comprises various validation on customer and item. And the validation of item extends to item price, cost and so forth. Hence, this development model suits for building software with huge number of components/iterations.

3.3       Solution Justification

As reviewed earlier, current development process – Waterfall development process is not suitable for comprehensive software development. Hence, three development process with focus on software process improvement are,

• Reverse Engineering: predictive process model spends huge amount of time for the requirements elicitation, analysis and its documentation for both requirements and design. Through reverse engineering approach, which abolishes the requirements by reviewing the existing commercial ERP software Oracle’s JD Edwards EnterpriseOne to extract business requirements.
• Feature-Driven Development: the origin of this methodology is to deal with bigger team in combining whole software engineers in eOne since ERP is integration of multiple suites with limited time 1.5 ~ 2 years’ time frame. This incremental and iterative nature improve software process by following five phases described earlier.
• Scrum: with minimized documentation and putting more effort on coding itself based on the analysis made through reverse engineering. This approach is essential to shorter sprint to generate usable software in time.

All three approaches are essential to build a light ERP software successfully and accomplish the software process improvement.

3.4       Solution Implementation and Communication Plan

The software process improvement plan is ongoing project by choosing right process models which are most suitable for eOne. IDEAL and three process models for strategic level and tactical level are chosen for the success of project.

3.4.1      Solution Implementation

The organization need evolving as depicted in figure 10 which is evolved form based on figure 5.

Figure 10. Revised Organization for SPI

In this figure, the practice suggested by IDEAL model got applied to accomplish the software process improvement which is align with software development models in building a light ERP software for eOne. In this steps, eOne builds the infrastructure for successful software process improvement as below (Layman, 2005),

• Executive Leadership Group (ELG) & Management Steering Group (MSG): Since eOne is a small organization which combines ELG and MSG for sponsoring SPI plan including approval, budgeting. This team is accountable for the success of SPI.
• Software Engineering Process Group (SEPG): comprises senior software engineers, analyst, architects, and developers to decide on development approaches.
• Process Action Teams (PATs): this team undertakes some process development or improvement task based on hands-on development experience.

3.4.2      Communication Plan

The purpose of communication plan is to make sure that ongoing software process improvement plan is relevant, accurate, and consistent to project stakeholders and other audiences to gain support and cooperation from each stakeholders as well.

Commonly, the development of communication action plan comprises the processes as depicted in figure 11 (MITRE, n.d.).

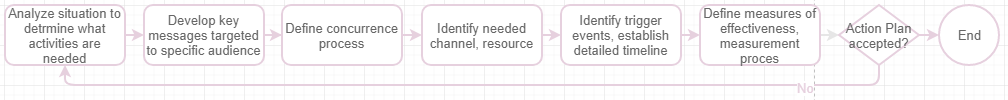

Figure 11. Communication Action Plan

3.4.2.1     Communication Objective

Open and effective communication including both top-down and down-top to meet,

• Promote and gain effective support for the software process improvement plan
• Take initiative of process improvement to implement best practice
• Give accurate and timely update of project
• Deliver a consistent message

3.4.2.2     Audiences

Table 2 represents the target audiences for the effective communication based on the organization depicted in figure 9.

Table 2. Communication Purpose per Target Audiences

3.4.2.3     Communication Approach

Table 3 describes possible communication approach based on audience and purpose defined in table 2.

Table 3. Communication Approach

Effective and open communications are vital elements for project success by visualizing the vision and direction of the project.

4              Metrics and Measurement Process Improvement

The assumption made so far is that a good software process results in a high quality software, nearly on time without exceeding its budet based on SPI enviornment in figure 12.

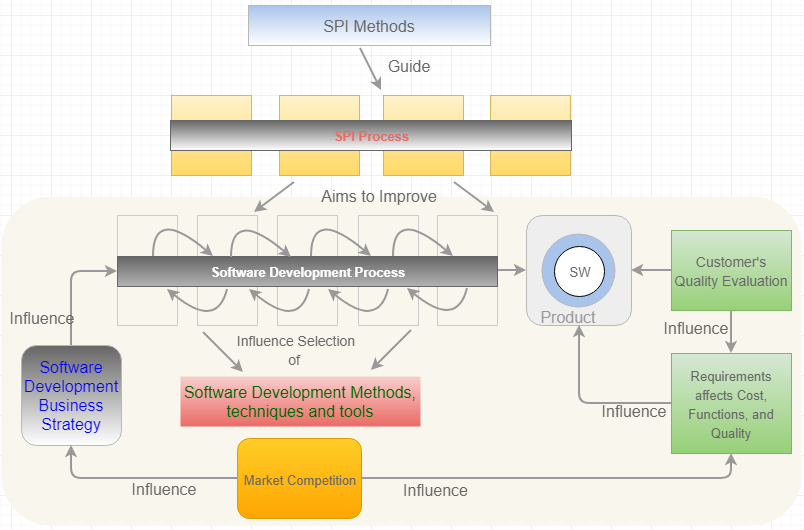

Figure 12. SPI, Software Development, and Software Quality

4.1       SPI Initiatives

The SPI initiatives comprises frameworks, practices, and its tools used. Frameworks help the organization to prioritize its improvement and to focus on the area where more attention is needed. Practices are performed and planned software engineering practices during software development lifecycle (SDLC). And tools help Software Process Improvement (SPI) project to utilize requirements management, scripting for automation, and configuration management (Islam& Unterkalmsteiner, 2009). This posting reviews the methodology for metrics, metrics to use, challenge of selected methodology, and its solution.

Table 4. SPI Framework and Measurement Methodology

Note: GQM is Goal/Question/Metric Method which to be described further.

Table 4 is simplified view of Software Process Improvement project in developing a light ERP software for eOne. The objectives of these metrics are to assess the project scope, to control the cost of development, and to ensure project cost within budget respectively. Figure 13 depicts the goal of SPI using Quality Improvement Paradigm (QIP) in the organization which can be utilized for eOne.

Figure 13. Corporate Goal and Project Goal

4.2       Metrics

The metrics, the quantitative measurement of software quality, determine the quality of software, which can be categorized into size, productivity, rework, effort, schedule, and quality, which are highly dependent on the capability maturity level of the development process during the software development lifecycle (McAuley, 1993). There are various measurement frameworks available where a measurement frameworks is a set of related metrics including data collection mechanism, and data uses in software (Mendonca et al., 1998).

Table 5 describes metrics to measure software development activities to use for software process improvement plan for eOne.

Table 5. Measurement Detail

The development project of light ERP software project is to establish a baseline for the measurement of SPI for eOne. Hence these metrics are to be analysed and assessed throughout software development lifecycle.

4.3       Measurements Plan

This section reviews overall measurement plan encompassing how to collect it and who does the collecting it, how to analyse and evaluate it by reviewing the metrics chosen above. Table 6 entails the definition of metrics and its measurement.

Table 6. Metrics Definition & Its Measurement

Note: Cost Metrics and Schedule Metrics are combined here because these factors are tightly related and intertwined.

Table 7 gives the detail view of the source of data collection and collector for chosen metrics. The main concern of light ERP software development is budget and time factor by putting the focal point to the features in the system. It can be good approach to assess the improvement through benchmark based on similar software development project when applicable.

Table 7. Metrics Data Source & Collector

Analyzing the collected measurement data is essential to generate the indicators for improvement. In other words, indicators are derived from the performed analysis on measurement data. Commonly, both objective and subjective data analysis help management to analyze the improvement. The objective data comprises staff hours, SLOC, function points, components, test items, units codes, changes, or defects. And the subject data encompasses level of problem difficulty, degree of new technology involved, stability of requirements (Acqnotes, 2013).

The evaluation of the effectiveness of the measurement is important through examining the correlation between the goal attainment and measurement results as depicted in figure 14. In this figure, both database in core measurement process and experience data describe how the iteration of plan, perform and evaluation works (Islam & Unterkalmsteiner, 2009).

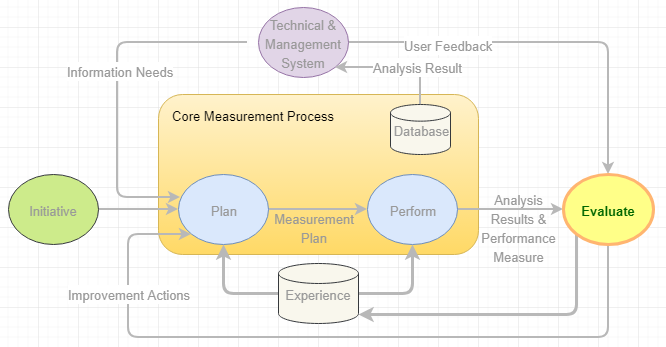

Figure 14. Evaluation in Measurement Process

4.4       Data Collection Approach - The Goal/Question/Metric Method (GQM)

The GQM methodology or Goal-Question-Measure approach which is built on Quality Improvement Paradigm (QIP) aims to supply information required for changing, guiding, and understanding the software process of a software development project in the organization. This methodology represents both a top-down approach and a bottom-up approach. The former is to define and collect measurement, and the latter is to analyze the data collected against stated measurement goals. GQM integrates the goal of organization into measurement goals and entails measurable attribute on step-by-step basis. Hence, GQM contributes to identify the exact metrics needed based on measurement goal, not the software best practice (Komi-Sirvio, 2004). In this context, software measurement compasses the quality of software as a product (product measures), process performed (process measures), and resources used (resource measures). Figure 15 depicts a brief overview using size metrics and quality metrics in building a light ERP software for eOne for the first time.

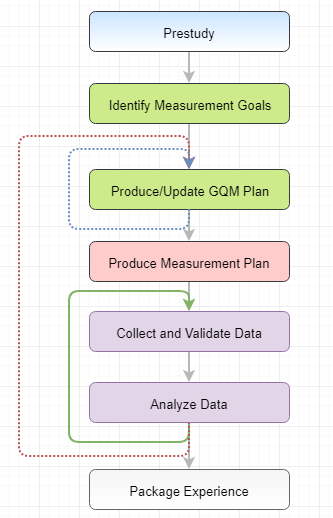

Figure 15. GQM as Data Collection Methodology

4.5       Challenges in measurement data collection and evaluation

The complexity and uncertainty of implementing metrics program makes whole SPI project skeptical. Especially, it is hard for eOne to choose right measurements since this organization does not have sufficient software development experience. As table 8 represents, challenges vary depending on metrics patterns including measurement itself, people, program, and its implementation (Iversena & Kautzb, n.d.).

Table 8. Metrics Program Challenges

4.6       Solution to tackle challenges

Five factors in SPI project need considerting to to overcome the hinderance in the measurement of SPI inititiave (Iversena & Kautzb, n.d.).

• Knowledge: The improvement knowledge has to be aligned with organization knowledge to make the goal realistic and visible;
• Organization: project organization;
• Design: Start from dettermining a simple goal;
• Communication: Share objectives and collected data; and
• Usage: use the data.

The software development process gets more disciplined, motivated by the notion that the quality of software is affected by the quality of the process where the process is defined, agreed, followed, and enforced. Assessing the SPI outcomes is as important as the implementation of SPI because the gain of its initiative can be measured only through this activities. SPI improvement project is a new paradigm for eOne who acquires industry best practices to fulfil SPI initiatives.

5              Software Quality Assurance Process Improvement

This section reviews how Software Quality Assurance (SQA) process positively affects the improvement of software development process, which resulted in the quality software. This section covers what is SQA process, relationship with process improvement, and its implementation. High level SQA can be represented in figure 16, which justifies how SQA can contribute to the improvement of software development process.

Figure 16. SQA & Process Improvement

Below reviews how SQA helps eOne build quality software by complying some SQA process model available.

5.1       Software Quality Assurance Process

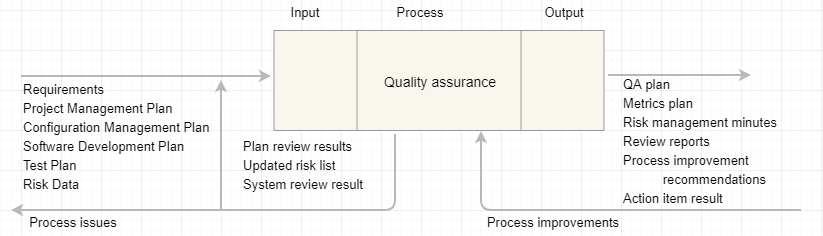

Figure 17 depicts a simple view of the Software Quality Assurance (SQA) process using input-process-output (IPO) diagram. This model comprises eight sub-processes comprising: 1. Review project level plans; 2. Develop Quality Assurance (QA) plan; 3. Coordinate its metrics; 4. Coordinate risk program; 5. Perform audits; 6. Coordinate review meetings; 7. Facilitate process improvement; and 8. Monitor test program (Drabick, 2000).

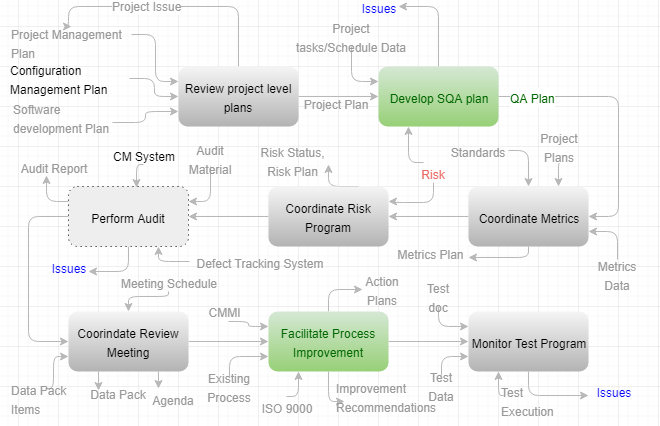

Figure 17. SQA Input-Process-Output Diagram

SQA assures that the function of software quality including the standards, processes, and procedures are appropriate for the project and are implemented correctly. Here reviews the requirements development, product integration, and validation in detail where CMMI identifies the process improvement processes with requirements development, requirements management, technical solution, product integration, verification, and validation (Fleming, n.d.).

5.1.1      SQA in Requirements Development Process

Any software development process starts from requirements elicitation, which encompass customer requirements, product requirements, and product-component requirements. SQA plays important role to determine the compliance of documented standards, processes, and procedures. In building a light ERP software for eOne, the design methodologies - reverse engineering, feature-driven development, and Scrum is used. In this process, the elicitation and analysis of requirements are based on existing commercial software, Oracle’s JD Edwards EnterpriseOne (E1). In the phases of requirements during SDLC, the business analysts review the functionality of exiting software and suggest the features may not be useful for small and medium sized enterprises.

5.1.2      SQA in Product Integration Process

The goal of ERP implementation is for integration, which integrates the components to the higher program, in the suites, or between suites. The transactional data of supply and demand resulted in Material Resource Planning (MRP) and sales order updates account receivable for instance. Hence, the integration is one of core process in developing ERP software and integral part of integration is bigger than sum of individual applications. In product integration of SQA ensures that the product/package, as integrated functions correctly. Also, SQA makes sure that documented standards, processes, and procedures are followed. Nonetheless, it is equally important the role of Software Quality Control (SQC) to perform the System Integration Test.

5.1.3      SQA in Verification and Validation

Validation is the process to check you have built a right product and verification is to determine the product built is right. Both processes are more relevant to SQC realm, but this process is equally important in building the enterprise solutions. Because the enterprise solution comprise huge number of programs towards suites, hence the important of verification and validation are paramount.

V-model represents clear semantics even when V-model is not the choice of design methodology in developing a light ERP. As depicted in figure 18, the top represents validation where below validation processes show verification (Mehle, 2017).

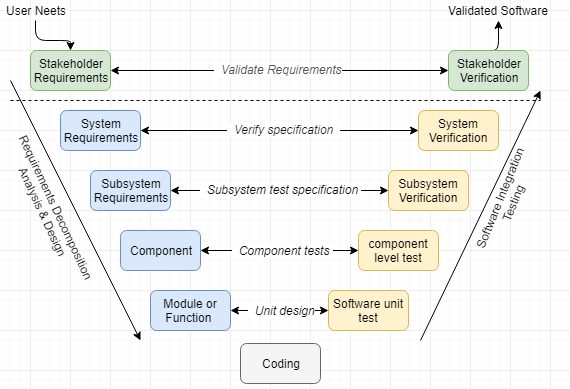

Figure 18. V-Model for Validation and Verification

In verification process, SQA plays an important role to check SQC has documented plan, procedures including to determine the effectiveness of verification process. In validation process, even it is very much SQC domain, SQA validates whether the test and feedback conforms the documented procedure and process. These processes highly impacts the continuous improvement and measurement.

5.2       Process Improvement Identification through SQA

The change of development processes results in some deficiencies which is the exposure of unfavourable outcome. This section reviews deficiencies and its counter measure to accomplish process improvement (Shang & Seddon, 2007). Since the project for software development is a light ERP, table 9 represents sources of deficiencies and its counter measure using SQA model.

Table 9. Deficiencies & Process Improvement using SQA

Note: Deficiencies above are common features of ERP software.

5.3       SQA Implementation and Its Communication Plan

The process improvements apply to the organization for continuous improvement, software development project for baseline of process improvement, and software development process for efficient development based on the assumption that the process improvement and SQA models resulted in quality software.

As depicted in figure 17, SQA encompass all below sub-processes. Table 10 is written based on CMMI process model which is self-explanatory in modelling how to communicate each improvement (Drabick, 2000).

Table 10. Process Model of SQA & Communication Plan

5.4       Justification

Above section has listed a number of software development processes during SDLC where the focal point of SQA include the requirements development process, product integration, and verification/validation. In building a light ERP software for eOne, the focus has to be made in both functional requirements and non-functional requirement encompassing functionality, usability, reliability, performance, and supportability (Fleming, n.d.).

Here reviews the potential benefits of each processes in relation with SQA – Requirements development, product integration, and verification/validation in the context of capacity maturity.

• Requirements Development: auditing on the requirements based on the exiting ERP software on non-functional requirements can generate the conformance of the documented standards, processes, and procedures. This process is directly linked to the verification process. This process is extremely important eOne in slimming down commercial package JD Edwards EnterpriseOne.
• Product Integration: Since the primary purpose of a light ERP software is integration, collaboration, planning, and The SQA process for product integration plays crucial role in the process improvement. In any enterprise solution, the assembly or package of multiple suites determine the success of project. Through sub-processes reviewed in SQM implementation section resulted in successful a light ERP software development project.
• Software Verification and Validation: This process determines the conformance of software whether a right software is building and the built software is right. This process enables useful feedback loop with users and conform the quality aspects of software.

As reviewed in this section, the Software Quality Assurance plays important role for the software development process improvement in building quality software.

6              Risk Management Process Improvements

Risk is the potential harm arises from current process or future event. Risk affects software quality assurance activities which assumed quality software is the result of software process improvement. Hence, proper risk management for eOne is essential for SPI improvement since it is correlated with software quality to build. Figure 19 depicts the information and communication flows in risk management process (NIST, 2012).

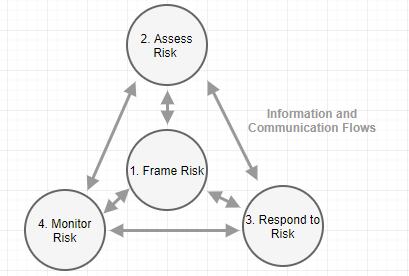

Figure 19. Risk Management Process

The first component of risk management addresses how to frame risk context to establish risk management strategy. The second component, risk assessment addresses how to assess risk based on the risk management strategy established. Based on the assessed risk, the third component determines how to respond to risk including alternative course of action; then the last component determines how the organization monitor risk over time.

6.1       Risk Assessment

This section discusses the importance of risk management and the key factors in risk assessment process. The success of a software development heavily depends on the amount of risk which corresponds to software development processes. Hence, it is paramount to identify, assess, prioritize, and manage the risk including understanding, mitigation plan because any risk may threaten the success of whole project itself. The benefit of using risk management in software development process are (Iversen et al., 2004),

• Focus on aspects of a problematic situation;
• Emphasize potential cause of failure;
• Build relationship between potential threats and possible actions; and
• Share the lesson learned with team

There are various risk factors: structure of the organization, stability of requirements, socio-cultural factors, similar organizational structure, security and privacy, quality management, project size, project management, negative impact on employer's moral, modularity, knowledge management, juridical framework, interfaces in the project management, hidden costs, fluctuation, experience in the domain, experience in offshoring/competences, dependency of the internal knowledge, and architecture. This section reviews factors in a risk assessment in the context of maturity in software process improvement (Zubrow et al., 1994).

Table 11. Key Factors for Risk Assessment

Table 11 represents factors associated with risk assessment questions on factors discovered during software development process. In this table, the purpose of requirements management is to establish a common understanding among stakeholders, which leads to an agreement to cover both technical and nontechnical requirements. Software project planning establishes reasonable plan for manage the project. And software configuration management is to build and maintain the integrity of software throughout SDLC.

6.2       Risks affect Process Improvement in SDLC

This section discusses various risks which impact software process improvement initiatives in building a light ERP software for eOne. The goal of software development project is to build software which can hold daily transactions based on a heavy commercial ERP software. When compiling software development process improvement, the risks fall into project risk, product risk, and business risk.

Table 12. Risks Impacts Process

6.3       Process Deficiencies

This section discusses risk resolution strategies within SPI team to address the processes deficiencies (Iversen, Mathiassen & Nielsen, 2004).  Table 13 entails the SPI risks in the scope of application – a light ERP software, framework – CMMI with Agile way, and Methodology – Sprint development model.

Table 13. Managing and Developing SPI Risks

Based on the risk assessment against software development lifecycle, it is paramount to recognize and identify both weaknesses and strengths in it. The assessment process analyses eOne’s software development capabilities and compares them to the industry standards. Any findings of assessment help to educate developers by exposing any deficiencies in their processes and procedures in building quality software – a light ERP software (Zapparolli, 2008). Table 14 describes the risk during software development phases. As marked in this table, there are possible deficiencies in each processes throughout SDLC.

Table 14. Process Deficiencies in Software Development Phases

Following section reviews how to mitigate the risk identified in this section.

6.4       Implementation and Communication Plan

So far, risk in processes are identified for eOne. It is time to implement its mitigation plan based the risk assessment made to improve software process. Figure 20 depicts risk mitigation planning in overall risk management process (AcqNotes, n.d.).

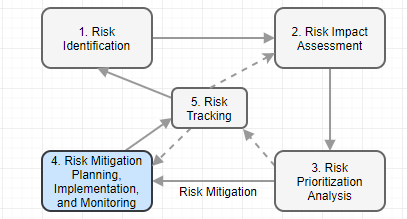

Figure 20. Risk Mitigation

Throughout the software development project, it is vital to make sure the effective communication among all stakeholders, managers, developers, and Quality Assurance team. Sharing information and getting feedback on risk will greatly increase the probability of project success. Risk management is extensive discipline, which can mitigated through,

• Be proactive about risk management
• Use checklists, and assess based on baseline accumulated
• Prioritize risks based on the severity of exposure
• Frequent feedback with stakeholders
• Decompose large risk into smaller, if any,
• And proper communication on current and future risk.

Assumption was made that the software must be tested in each iteration of development phases for the quality assurance and potential risk in the developed software. The main purpose of this activity is to verify whether the requirements met and prevent/remove possible defects in it. This activity should be more or less same whether it complies with the traditional waterfall model or the agile methodology. Table 15 describe implementation of the risk assessed and its communication plan (Zapparolli, 2008).

Table 15. Implementation and Communication Plan

6.5       Solution Justification

This section discusses how the risk assessment, its mitigation plan are beneficial to eOne in implementing software process improvement plan. To fulfil continuous improvement in the software quality, it is imperative to develop risk approaches throughout software development processes. Figure 21 depicts possible development risk approaches which can be used for software process improvement plan (Iversen et al., 2014). In this figure the risk approaches outcome is to be used next iteration of development in organizational context using action research process.

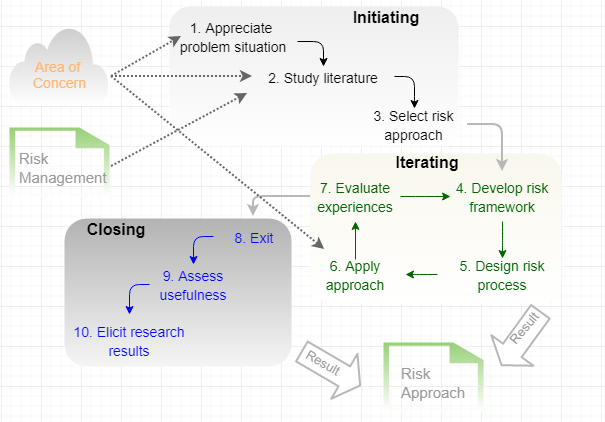

Figure 21. Developing Risk Approaches

So far, various approaches were reviewed including the benefit of risk management, key risk assessments factors, how risk management in software development contributes software process improvement, how this approach help to mitigate its deficiencies. It is important for eOne to ensure the efforts for process improvement at the organization level as suggested above because various framework and methodology reviewed are relevant to the development of light ERP software by tackling existing and potential tasks in this project.

References

• Acqnotes, (2018). Risk Mitigation Plan Implementation. Retrieved August 7, 2018, from http://acqnotes.com/acqnote/tasks/risk-mitigation-plan-implementation
• Acqnotes, (2013). Software Estimation, Measurement, and Metrics. Retrieved July 24, 2018, from http://www.acqnotes.com/Attachments/Chapter%2013%20Software%20Estimation,%20Measurement,%20and%20Metrics%20-%20GSAM%20Version%203.0.pdf
• Anees, A. (2017). Software process improvement models and their comparison. International Journal of Advanced Research in Computer Science, 8(5) Retrieved from https://proxy.cecybrary.com/login?url=https://search-proquest-com.proxy.cecybrary.com/docview/1912631602?accountid=
• Drabick, R. (2000). A Process Model of Software Quality Assurance/Software Quality Engineering. Retrieved July 30, 2018, from http://asq.org/pub/sqp/past/vol2_issue4/drabick.html
• Fleming, I. (n.d.). SQA Definition. Software Quality Assurance and Software Quality Control terms and definitions in the context of a Software Process Improvement framework. Retrieved July 31, 2018, from http://www.sqa.net/
• Foegen, M., Solbach, M., & Raak, C. (2009). Agile Process Method. Sprint Change Method. Retrieved July 10, 2018, from https://resources.sei.cmu.edu/asset_files/Presentation/2009_017_001_22328.pdf
• HM & S. (n.d.). What is SPiCE 1-2-1? Retrieved July 10, 2018, from http://www.spice12drive.com/cms/en/about-spice-1-2-1.html
• Islam, A. M. & Unterkalmsteiner, M. (2009). Software Process Improvement Measurement and Evaluation Framework (SPI-MEF). A Framework for Evaluating the Outcome of SPI Initiative. Retrieved July 18, 2018, from http://www.diva-portal.se/smash/get/diva2:829772/FULLTEXT01.pdf
• Iversena, J. H. & Kautzb, K. (n.d.). The Challenge of Metrics Implementation. Retrieved July 20, 2018, from http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.25.8813&rep=rep1&type=pdf
• Iversen, J. H., Mathiassen, L., & Nielsen, P. A. (2004). MANAGING RISK IN SOFTWARE PROCESS IMPROVEMENT: AN ACTION RESEARCH APPROACH. MIS Quarterly, 28(3), 395-433.
• Komi-Sirvio, S. (2004). Development and Evaluation of Software Process Improvement Methods. Retrieved July 20, 2018, from https://www.vtt.fi/inf/pdf/publications/2004/P535.pdf
• Layman, B. (2005). Implementing an Organizational Software Process Improvement Program. Retrieved July 9, 2018, from http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.136.7255&rep=rep1&type=pdf
• McAuley. A. B. (1993). Implementing Metrics for Process Improvement. Retrieved July 19, 2018, from doras.dcu.ie/19001/1/Angela_McAuley_20130613134623.pdf
• McFeeley, B. (1996). IDEAL: A User’s Guide for Software Process Improvement. Retrieved July 6, 2018, from https://resources.sei.cmu.edu/asset_files/Handbook/1996_002_001_16433.pdf
• McGreal, D., & Jocham, R. (2018). The Professional Product Owner Leveraging Scrum as a Competitive Advantage. Addison-Wesley Professional. Retrieved ProQuest in CTU Library
• Mehle, M. E. (2017). Particle Accelerators as Medical Devices. Retrieved July 31, 2018, from https://www.linkedin.com/pulse/particle-accelerators-medical-devices-marcos-e-mehle
• Mendonca, M.G., Basili, V.R., Bhandari, I.S, and Dawson, J. (1998). An approach to improving existing measurement frameworks. IBM Systems Journal, vol. 37, Retrieved July 19, 2018, from http://www.cs.umd.edu/~basili/publications/journals/J73.pdf
• Mirea, A. (2012). The IDEAL Model. Retrieved July 10, 2018, from https://www.slideshare.net/AdrianMirea/the-ideal-model
• MITRE. (n.d.). System Engineering Guide. Effective Communication and Influence. Retrieved July 16, 2018, from https://www.mitre.org/publications/systems-engineering-guide/enterprise-engineering/transformation-planning-and-organizational-change/effective-communication-and-influence
• NIST, (2012). Guide for Conducting Risk Assessments. Retrieved August 5, 2018, from https://nvlpubs.nist.gov/nistpubs/Legacy/SP/nistspecialpublication800-30r1.pdf
• Rose-Hulman. (2005). Software Process Maturity Questionnaire. Retrieved August 6, 2018, from https://www.rose-hulman.edu/class/cs/csse376/.../Assessment-Questionnaire.doc
• Saiedian, H. (2005). Software Process Improvement: An Introduction. Retrieved July 5, 2018, from https://people.eecs.ku.edu/~hossein/811/Papers/cmm.pdf
• Shang, S., & Seddon, P. B. (2007). Managing process deficiencies with enterprise systems. Business Process Management Journal, 13(3), 405-416. doi:http://dx.doi.org.proxy.cecybrary.com/10.1108/14637150710752317
• Sommerville, I. (2016). Software engineering. Boston: Pearson.
• Stephens, R. (2015). Beginning software engineering. Indianapolis, IN. Wrox, a Wiley Brand.
• TatvaSoft. (2015). Top 12 Software Development Methodologies & Its Advantages / Disadvantages. Retrieved July 16, 2018, from https://www.tatvasoft.com/blog/top-12-software-development-methodologies-and-its-advantages-disadvantages/
• Zapparolli, M. A. (2008). Conducting a software quality assessment (Order No. 1455394). Available from ProQuest Dissertations & Theses Global. (304365985). Retrieved from https://proxy.cecybrary.com/login?url=https://search-proquest-com.proxy.cecybrary.com/docview/304365985?accountid=26967
• Zubrow, D. Hayes, W. Siegel, J. & Goldenson, D. (1994). Maturity Questionnaire. Retrieved August 6, 2018, from https://resources.sei.cmu.edu/asset_files/SpecialReport/1994_003_001_16265.pdf
